How to enable Spotipo on Cloud Key

Spotipo needs to be installed on a seperate server first. If not done already, install by following tutorial available here.

Ensure Spotipo Can reach Cloud Key

Spotipo needs to access Unifi Controller running on port 8443. Please ensure that spotipo server can reach CK. If your spotipo server is hosted on a cloud server and CK is running locally, it might involve opening a port and enabling port forwarding

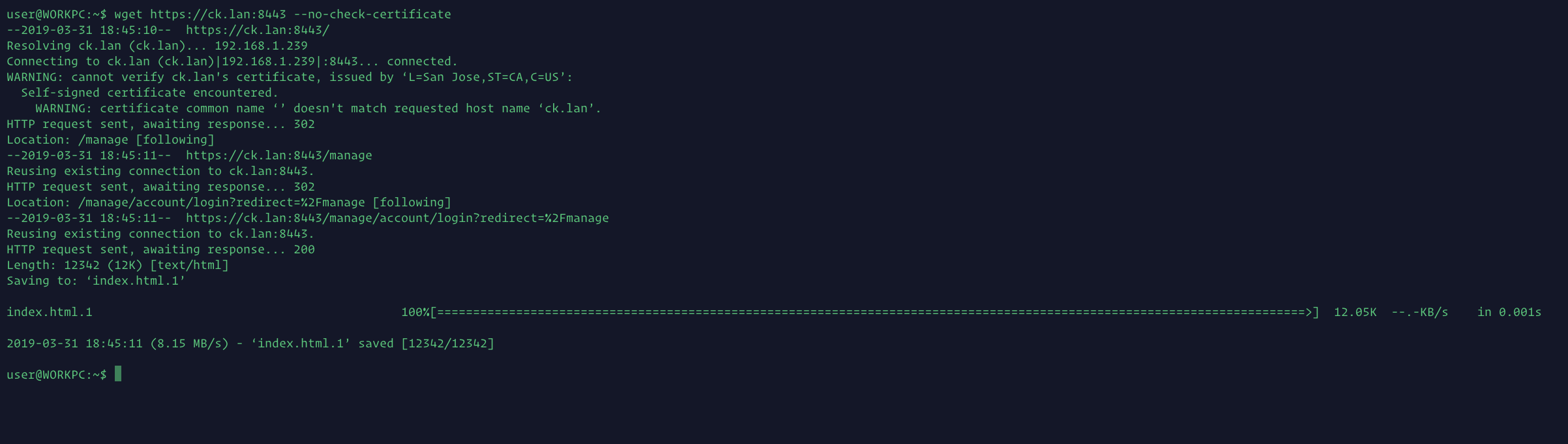

Test spotipo's connection to Cloud Key

Run the following command on your spotipo server's SSH console and make sure it's getting executed properly

wget https://<YOUR CLOUDKEY IP>:8443 --no-check-certificate

Configure Cloud Key Detail on Spotipo

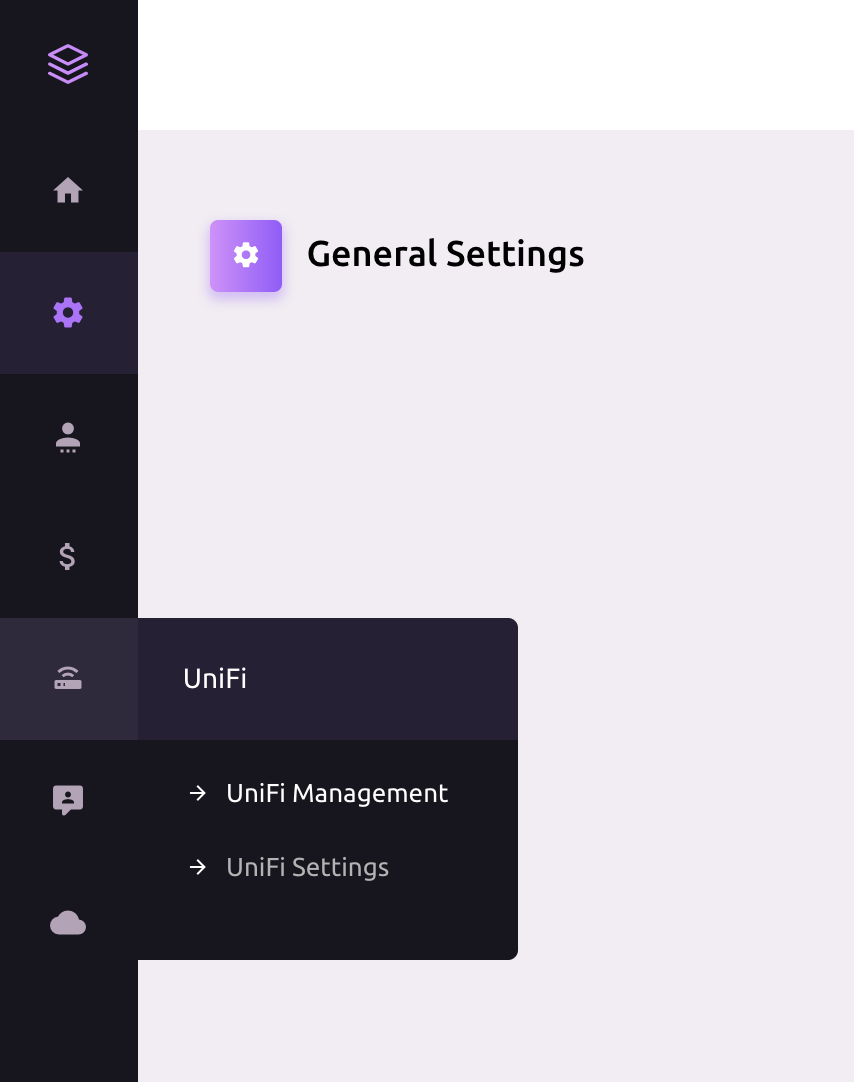

Go to Dashboard -> UniFi -> Unifi Management

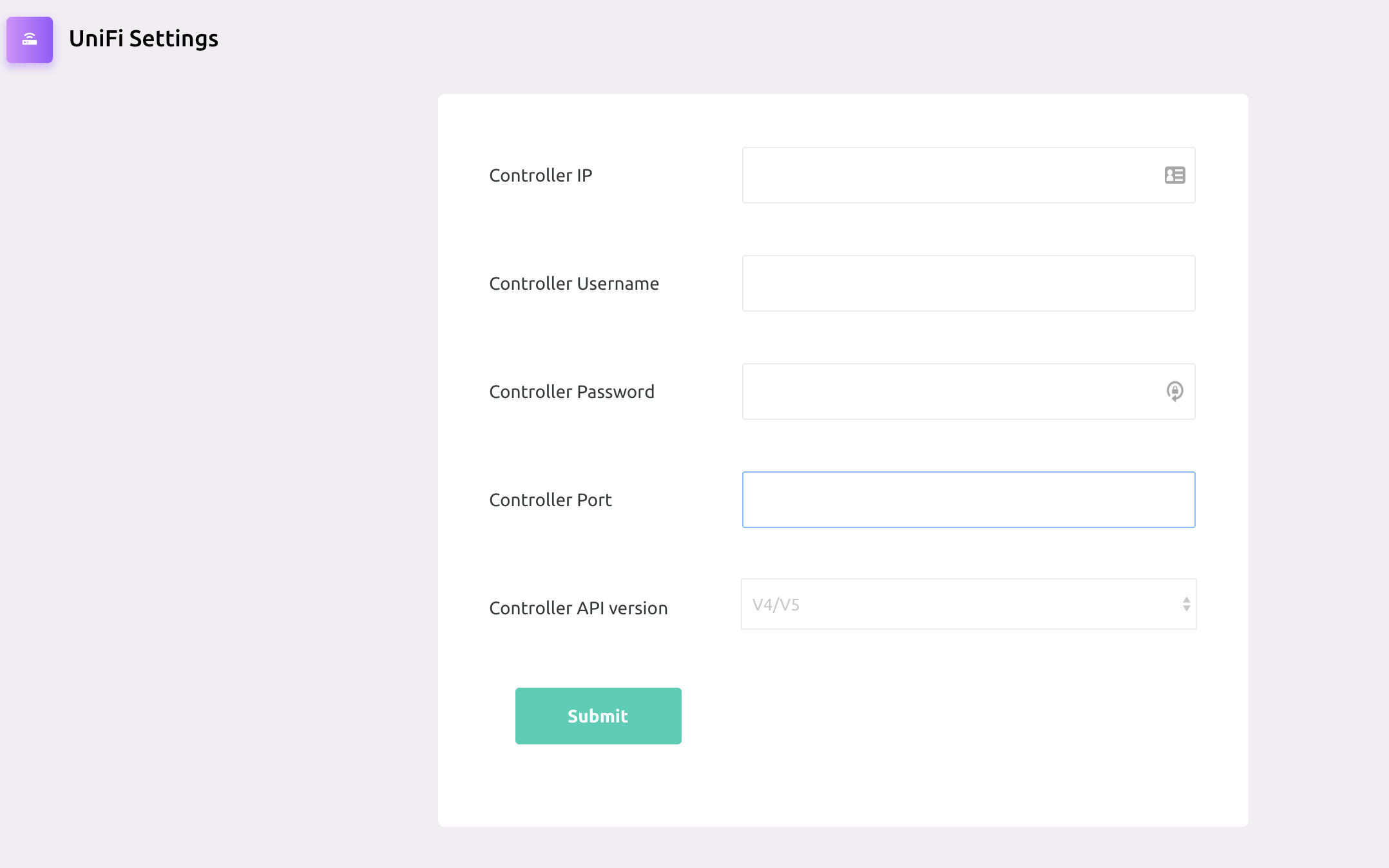

Enter there details of your Cloud Key and press Save

Add a Unifi site in Spotipo

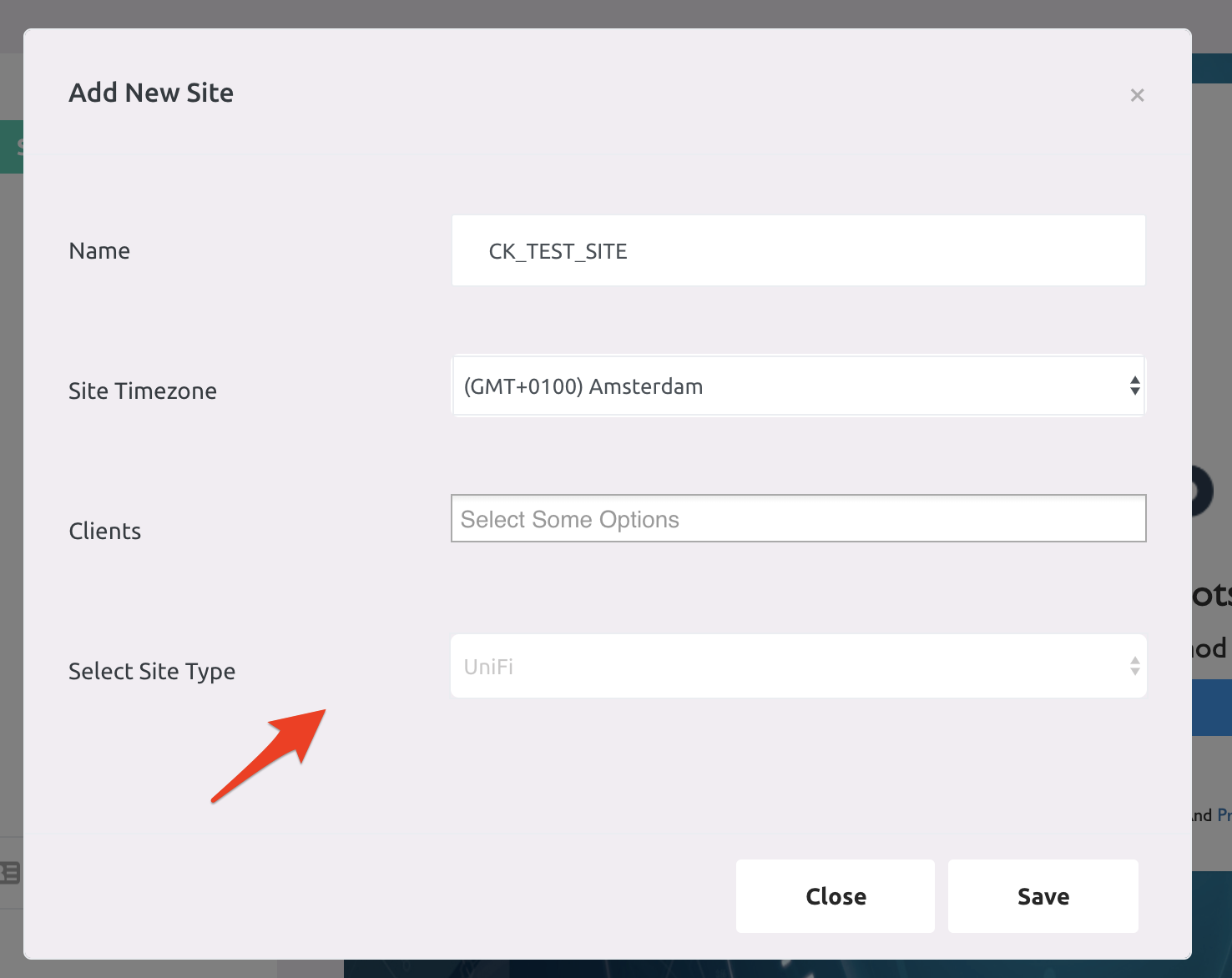

Add a new site in Spotipo using the option available in top right corner. Choose the site type as Unifi

Activate Site

Next step is to activate the site and choose a subscription. Please follow this.

Select the Unifi Site

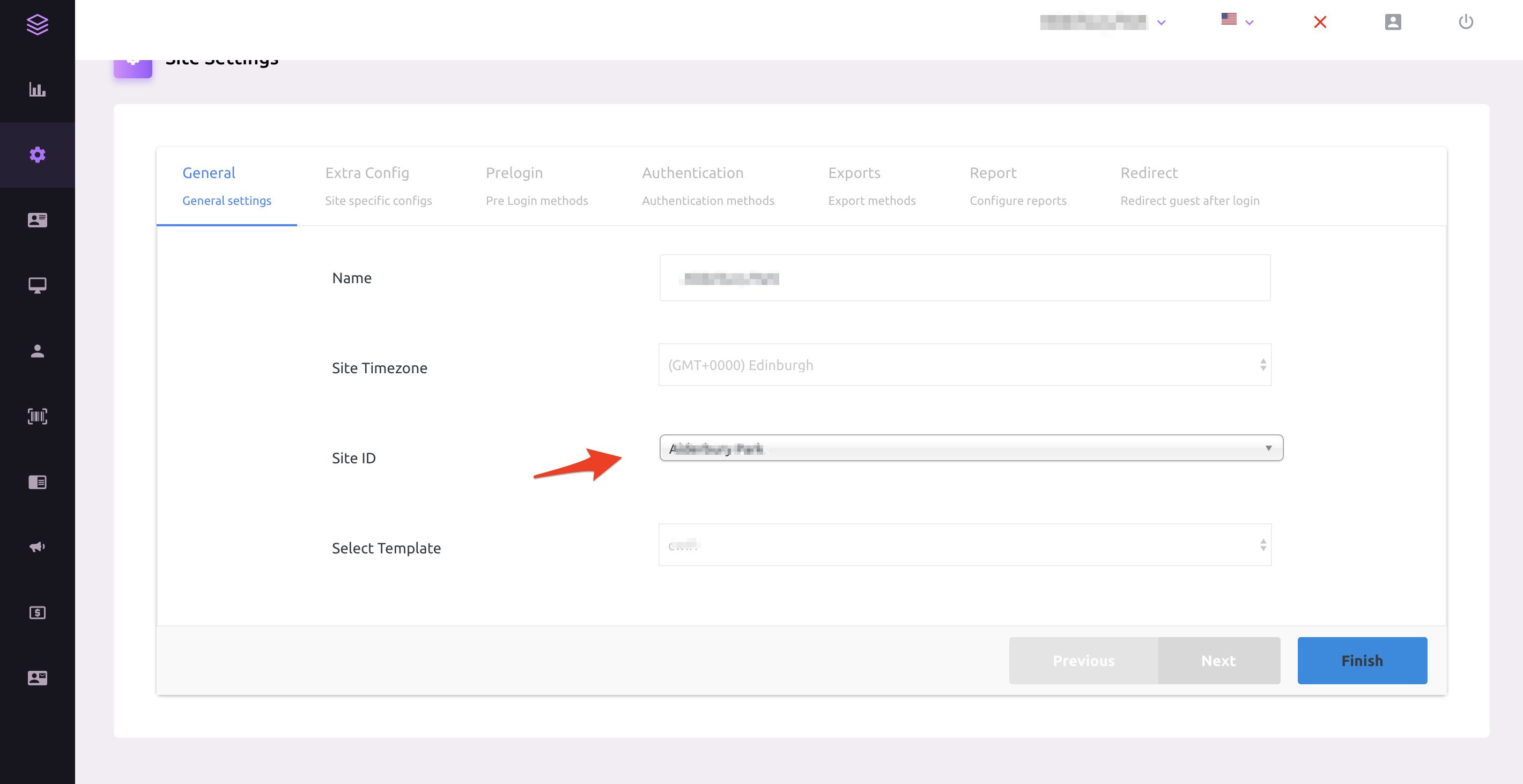

After activation, go to the site and select the Settings tab.

There select the name of the Unifi site you want deploy hotspot  under Site ID

Configure Cloud Key

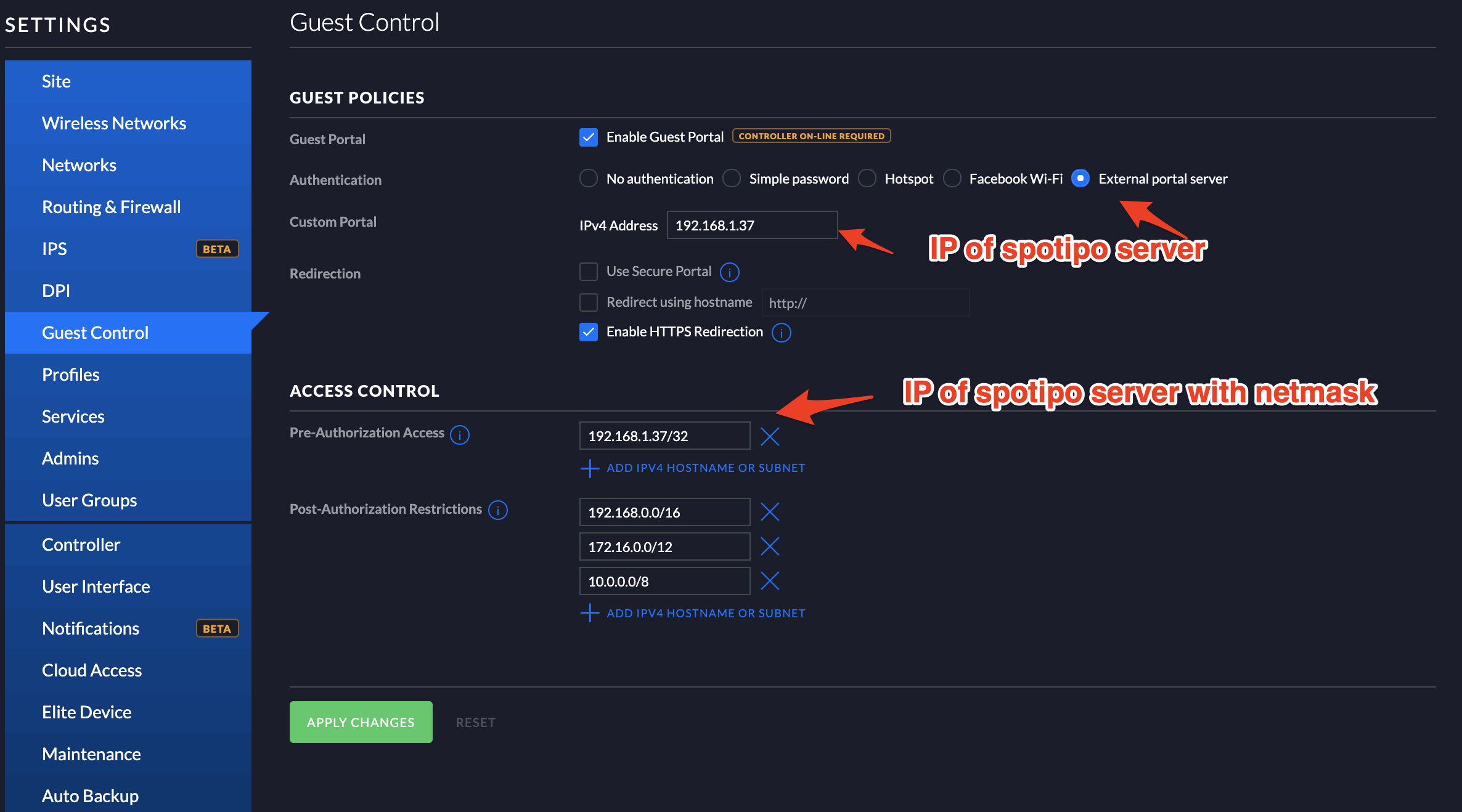

Login to CK's unifi controller interface and navigate to your site. Under Guest control, enable Guest Portal with external server.

Configure it with spotipo server details. Also make sure to configure Pre Authorization access

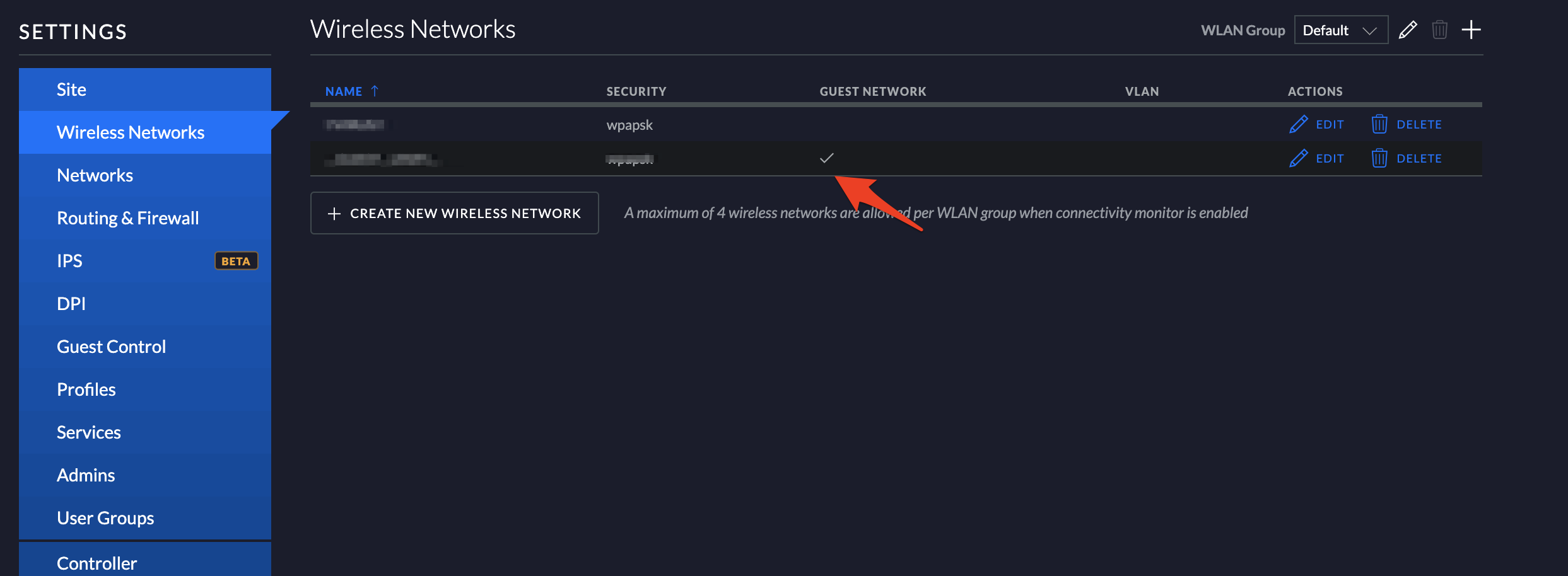

Next proceed to Wireless Networks tab and enable Guest Portal for the required SSID

Save And Test

Your Guest WiFi should be now ready, connect a Device to your network and test it out.
