Open Mesh

If not done already, install spotipo on your sever by following tutorial available here.

Make sure you have enabled ports 1812 and 1813 in your firewall for UDP traffic.

Add a Client

Client accounts have read only access only to sites allocated to them.

Its used for providing clients with access to stats.

Get started by adding a client , go to Dashboard -> Clients -> Add New Client and provide the necessary details.

Add a Site

Each location is represented by a Site. A site can have multiple routers (of the same type)

After adding the client add a new site by clicking on the Add New Site button in the drop down menu on top right.

Select the client you have just created, Site type as OpenMesh and configure the correct timezone and Save

Add an OpenMesh network to Spotipo

Go the site you have created in step 2. You can navigate to the site from drop down menu on upper right corner.

From toolbar tab select OpenMesh Nws option.

Create a new Network for configuring your OpenMesh network.

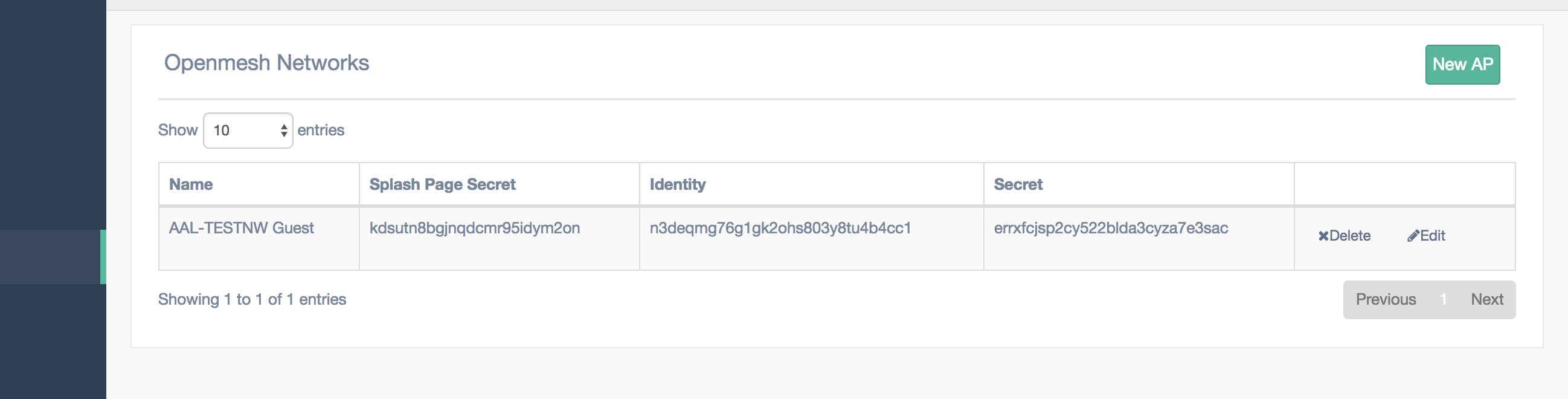

Once added, remember to note down the details created by spotipo for your network.

Configure Open Mesh SSID

Login to CloudTrax version 4 by going to https://ct4.cloudtrax.com/login

Go to Configure and pick an SSID of your choice.

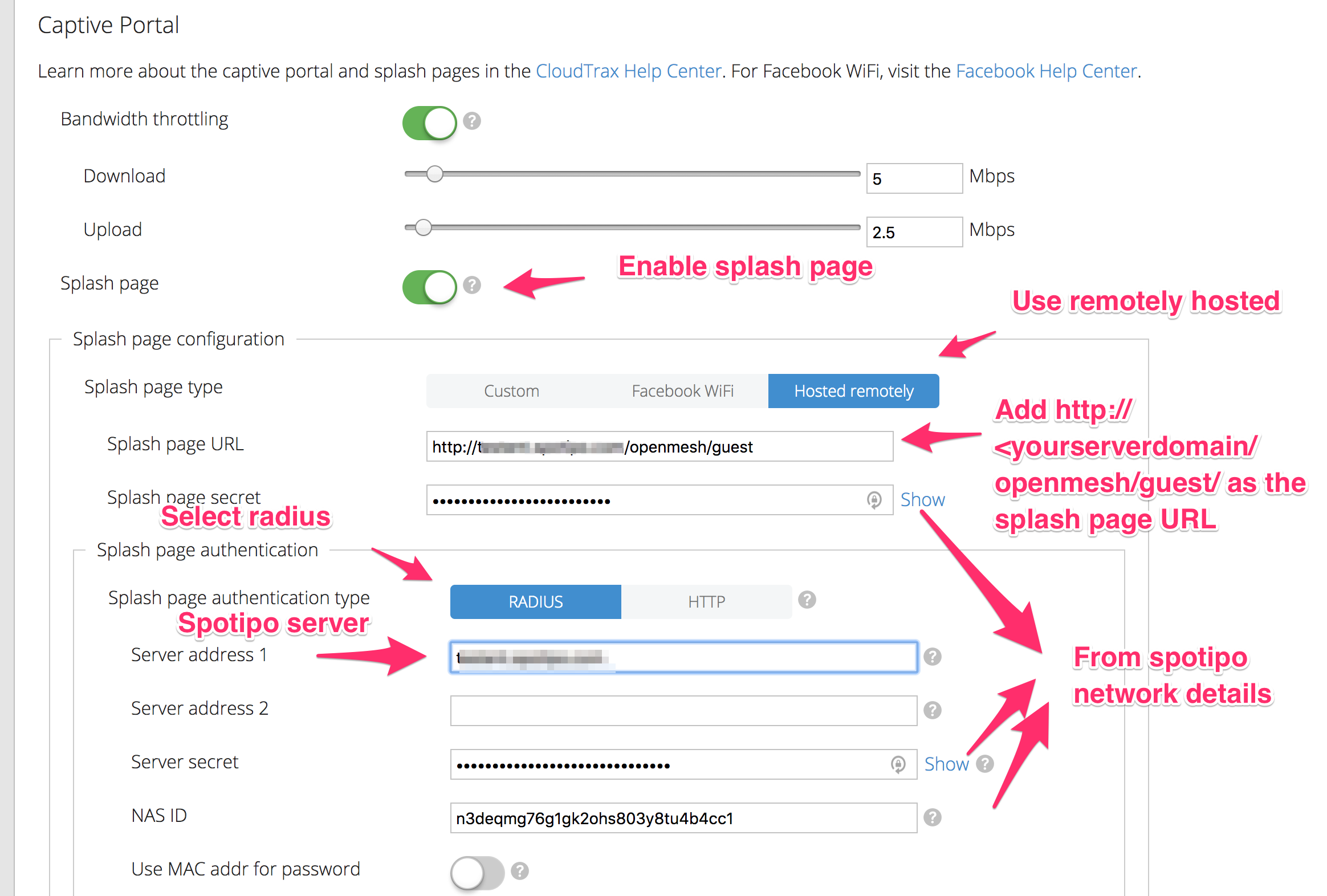

In captive portal section, enable Splash Page as per details given.

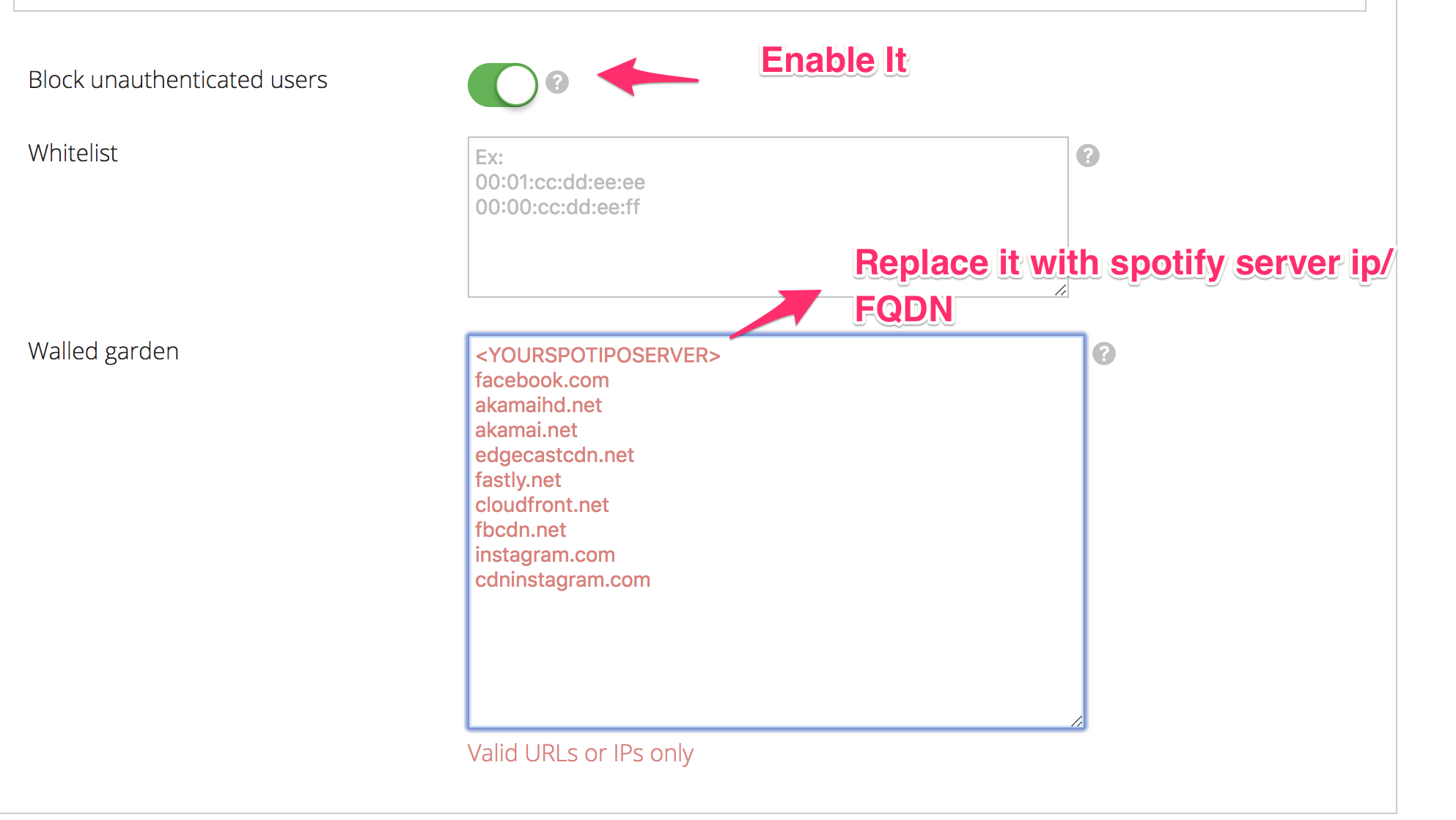

Add following domains to walled garden. Remember to replace with your spotipo server IP/FQDN

<YOURSERVER NAME/IP>
facebook.com
akamaihd.net
akamai.net
edgecastcdn.net
licdn.net
cloudfront.net
fbcdn.net
instagram.com
cdninstagram.com
Save and Wait

Remember to press Save so that all the settings will be saved in the cloud. Please wait for 1-2 minutes for those settings to be active on the AP.

If everything is configured properly, you should be able to see Spotipo landing page when connecting to Guest WiFi network.
