How to configure Aruba Central Hotspot with Spotipo

If not done already, install Spotipo on your sever by following tutorial available here.
Make sure you have enabled ports 1812 and 1813 in your firewall for UDP traffic.

Add an Aruba Central Site in Spotipo

Each location is represented by a Site. A site can have multiple routers (of the same type)

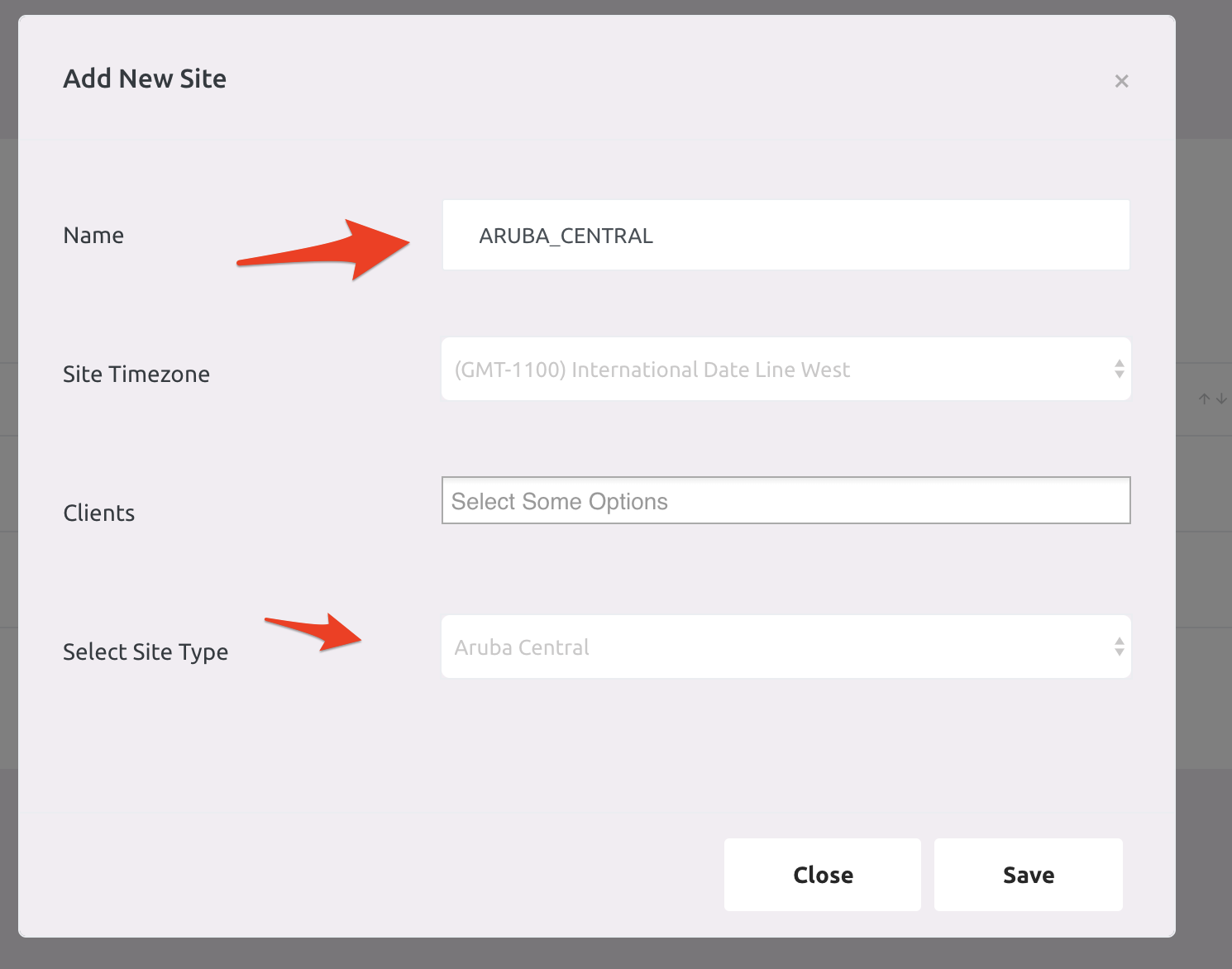

After adding the client add a new site by clicking on the Add New Site button in the drop down menu on top right.

Select the Site type as Aruba Central and configure the correct timezone and Save

Now proceed with site activation and license subscription.

Add a Network

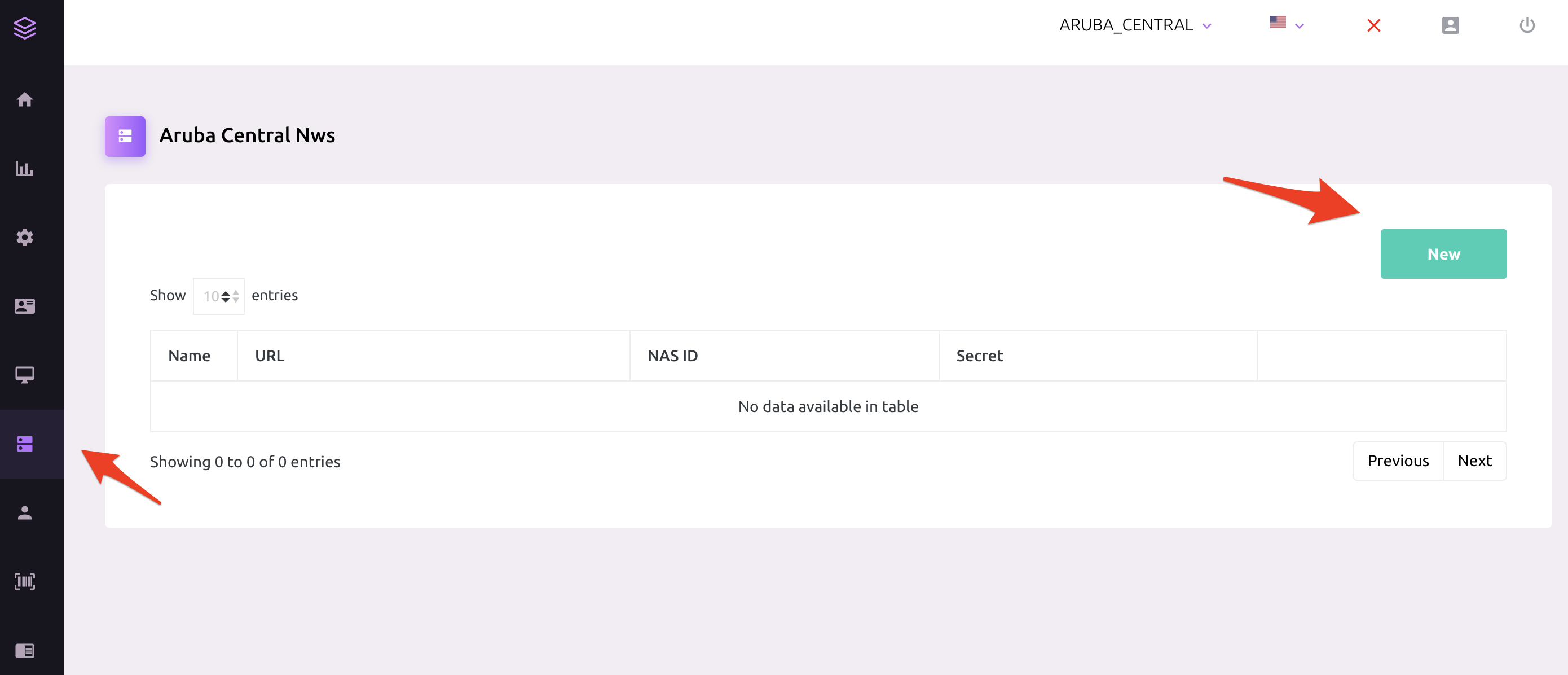

In the newly created site, navigate to Networks tab and create a New Network.

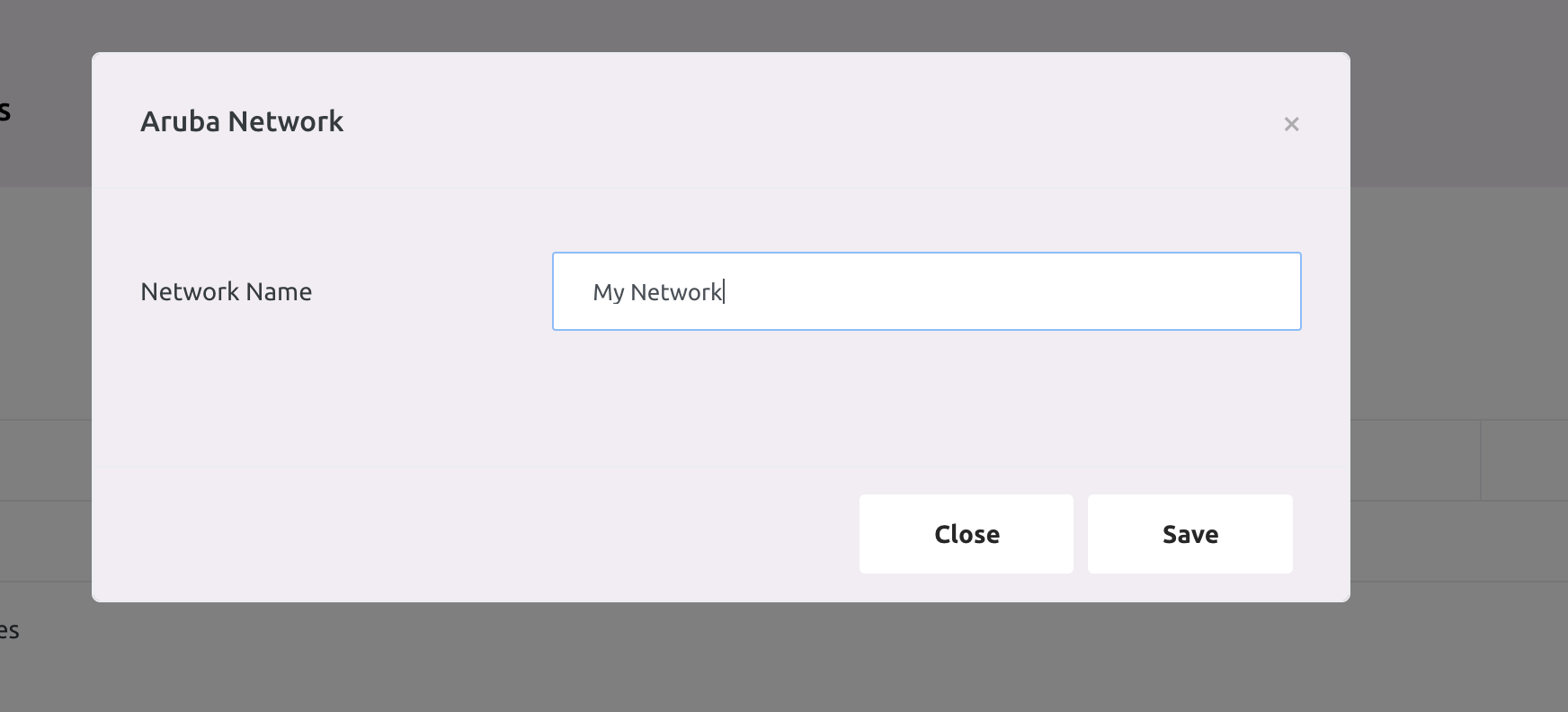

Provide a name to identify your network

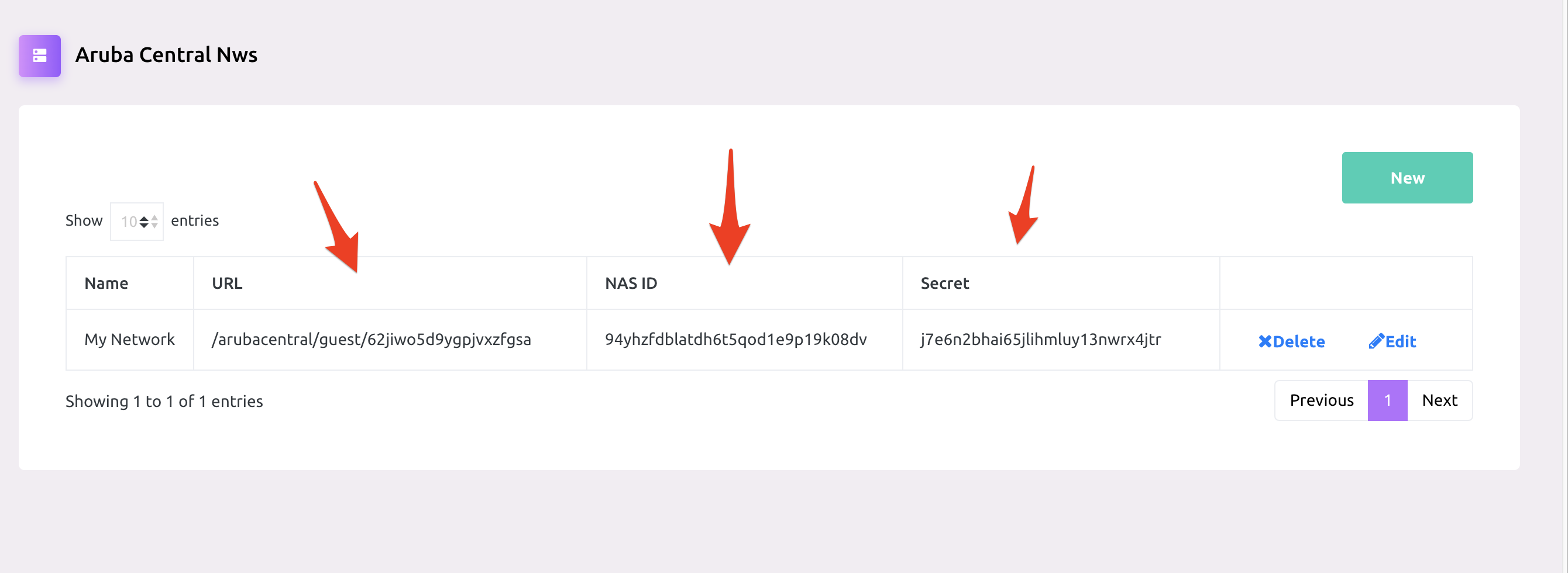

After adding the network, take a note on the URL, NAS ID and Radius Secret

Configure Aruba Central Network

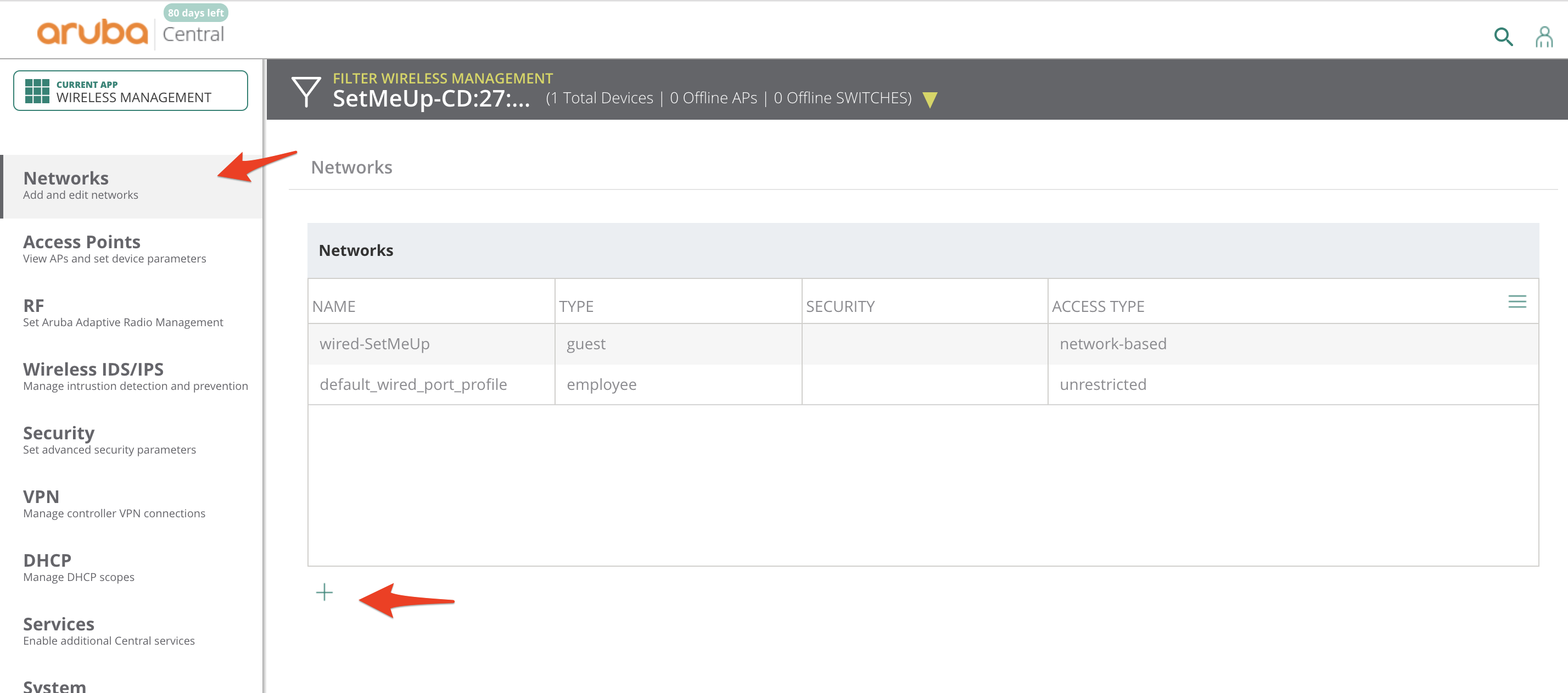

Log into Aruba Central and navigate ti Networks Tab. Press add new Network

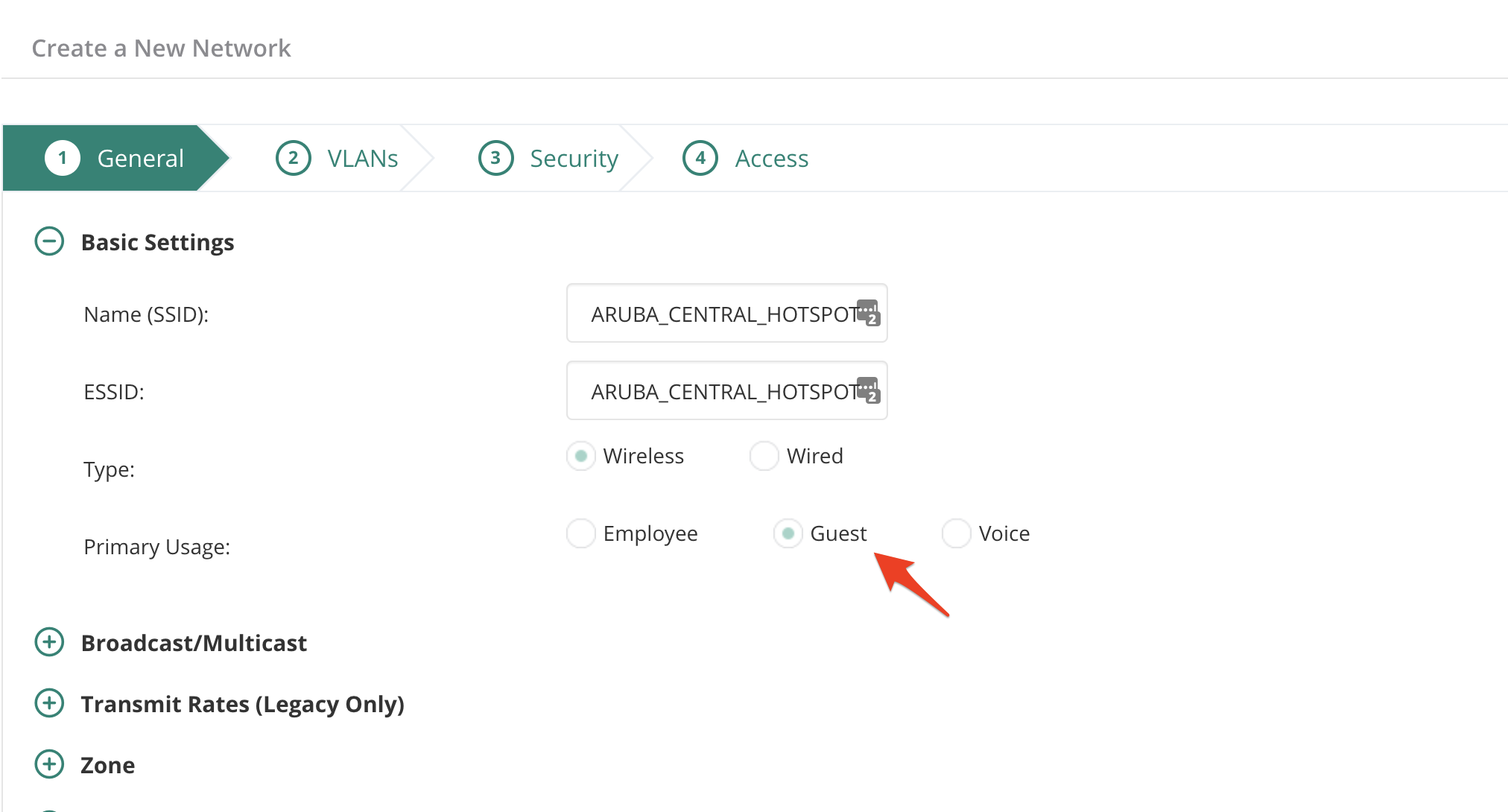

Configure the SSID you would like to have and select the type as Guest

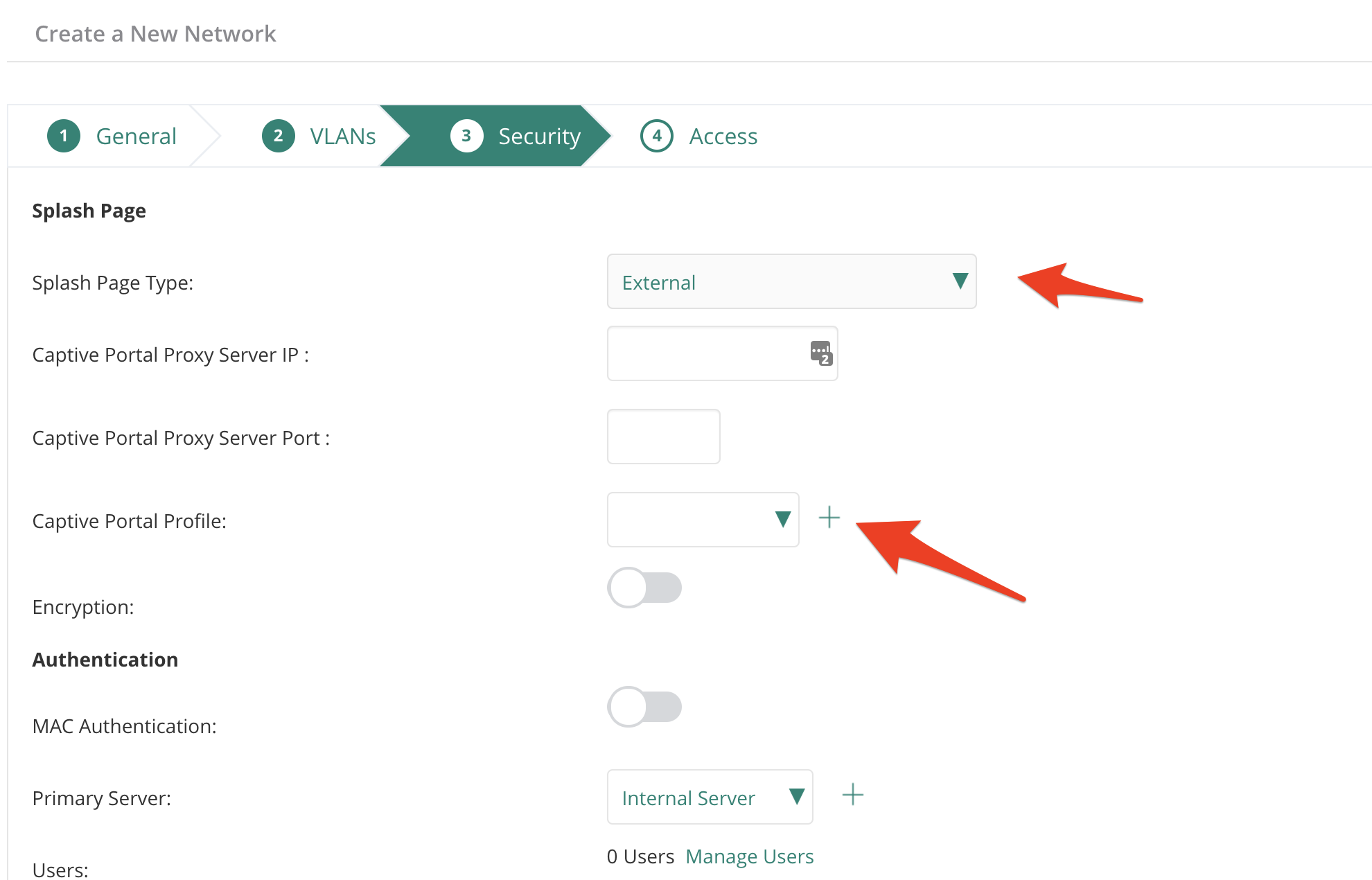

In the security tab select the Splash Page Type as External and press the + button to add new captive portal profile

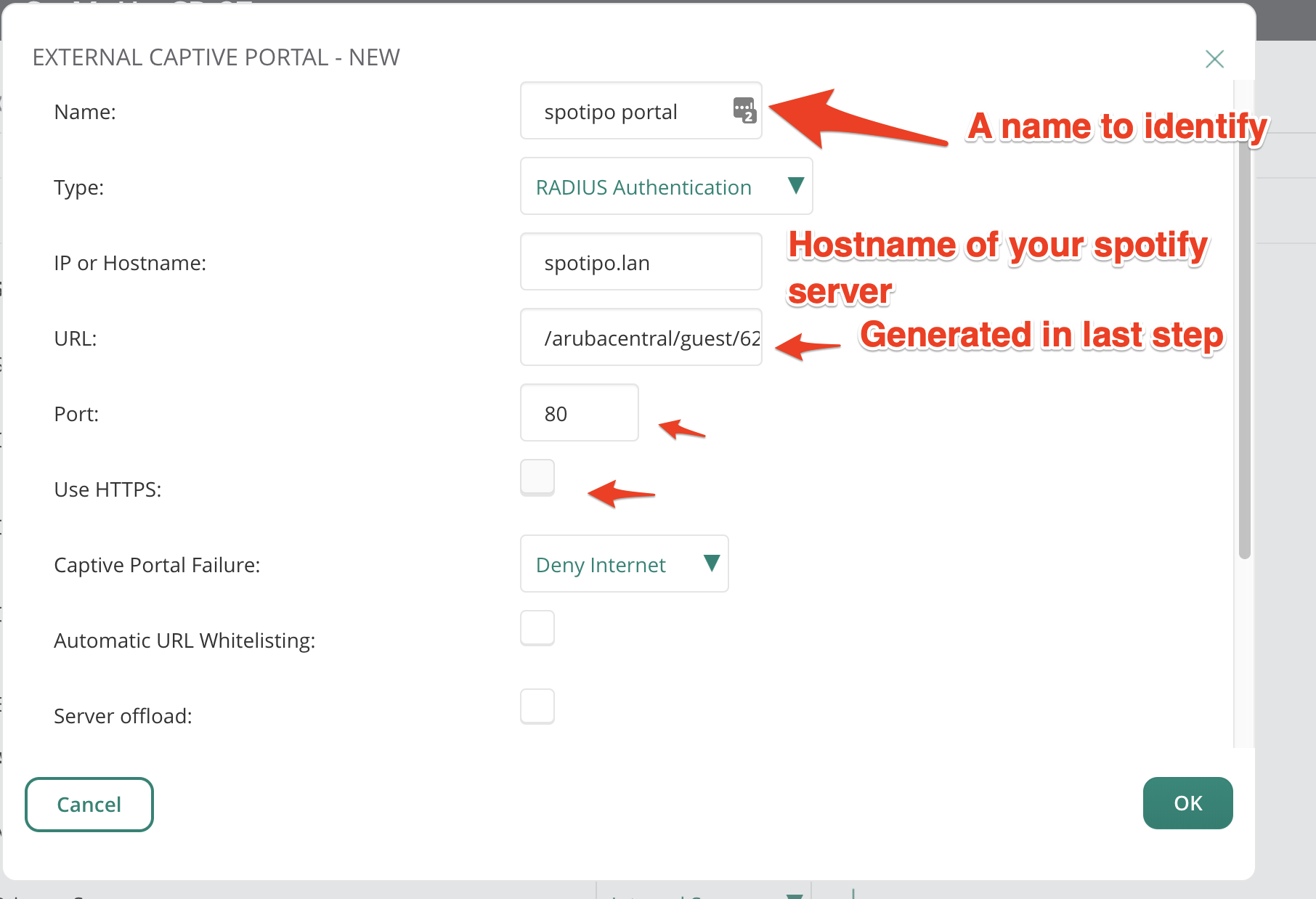

Provide a name to identify the captive portal profile. Also configure the hostname of your spotipo server and the URL generated in previous step.

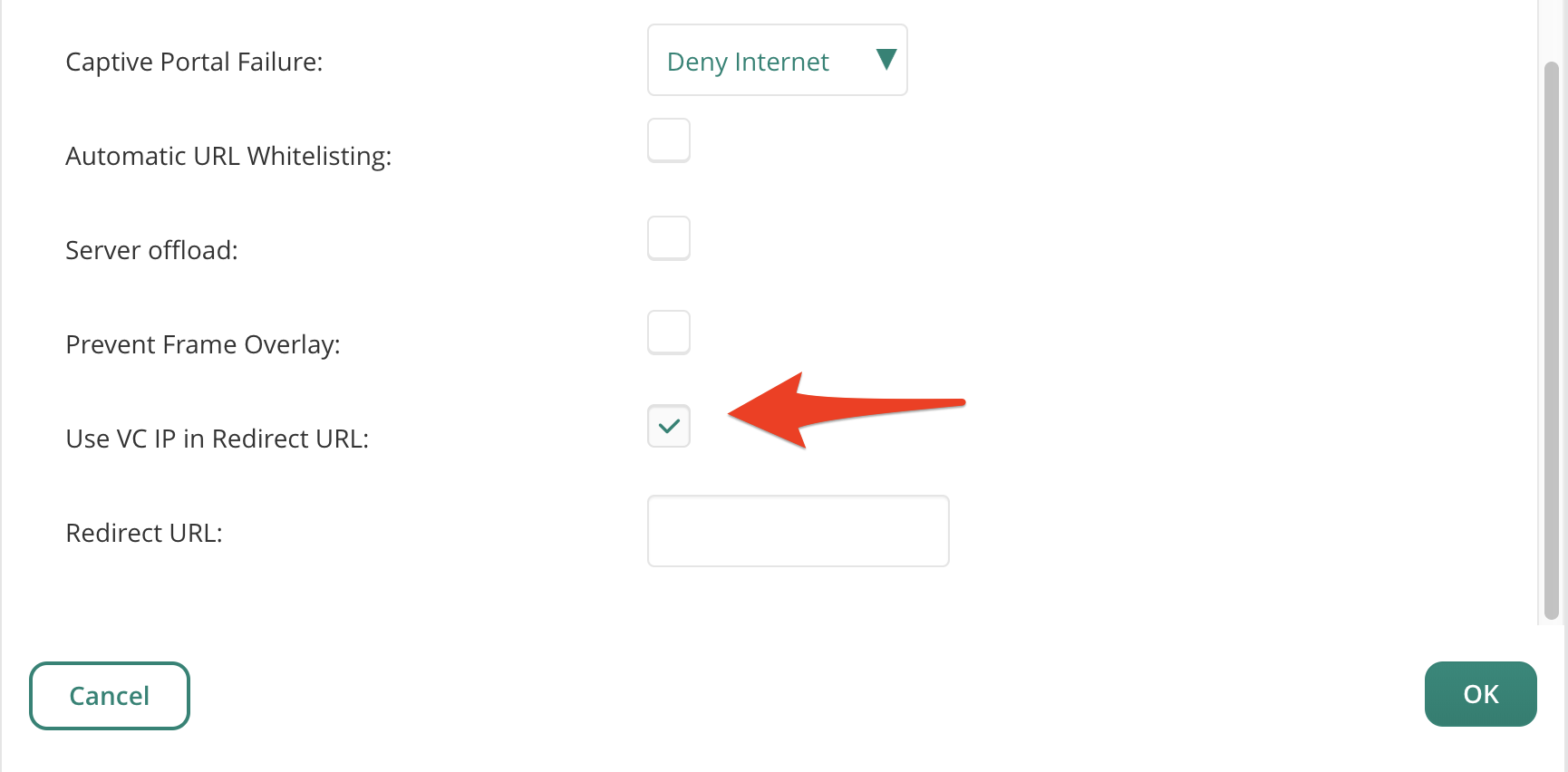

Also check the box to include VC IP in redirect URL.

Configure Radius Server

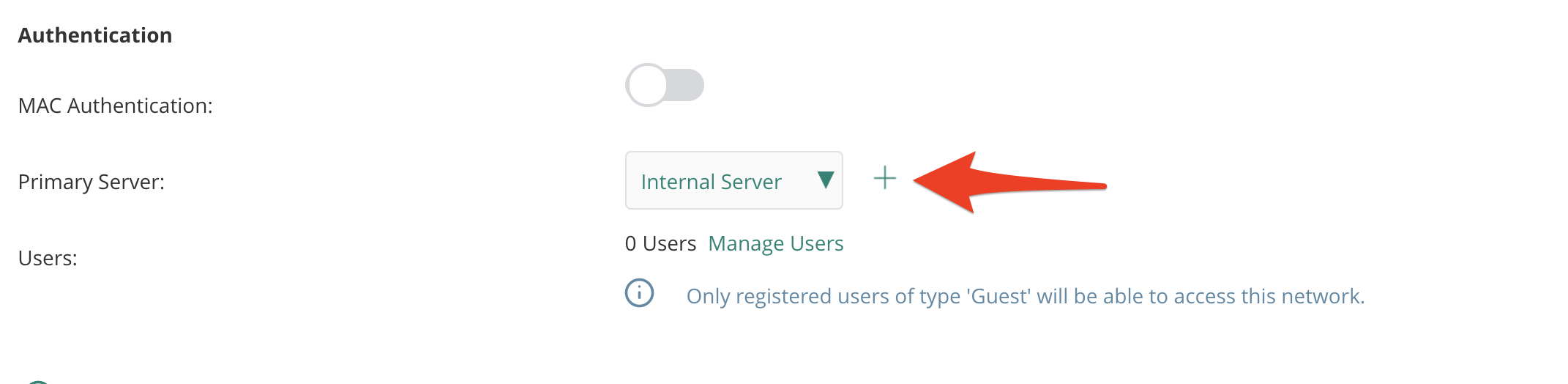

Add a new Authentication server as Primary Server

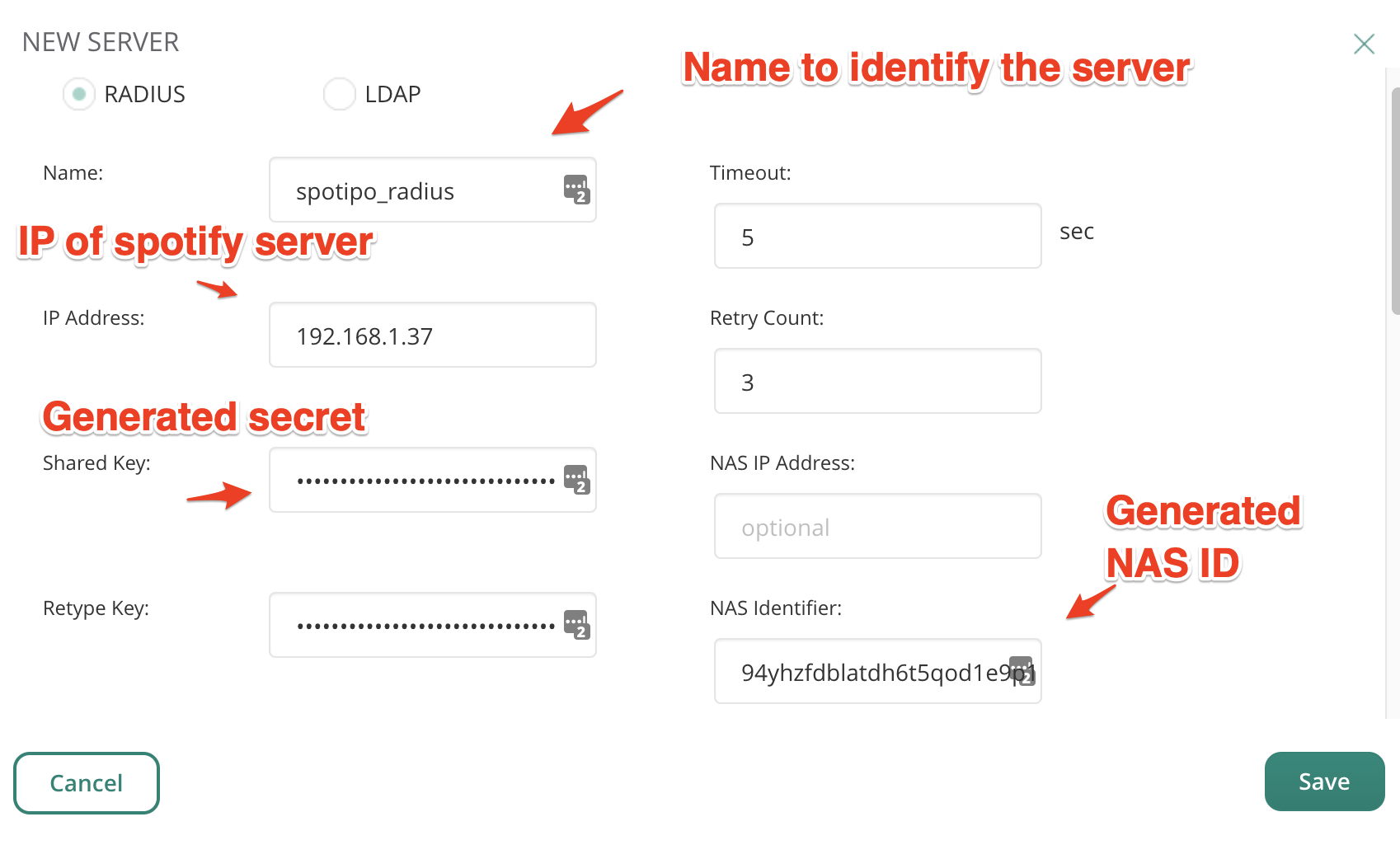

Provide the details of your spotipo server. Also fill in the NAS ID and Radius Secret generated in last step.

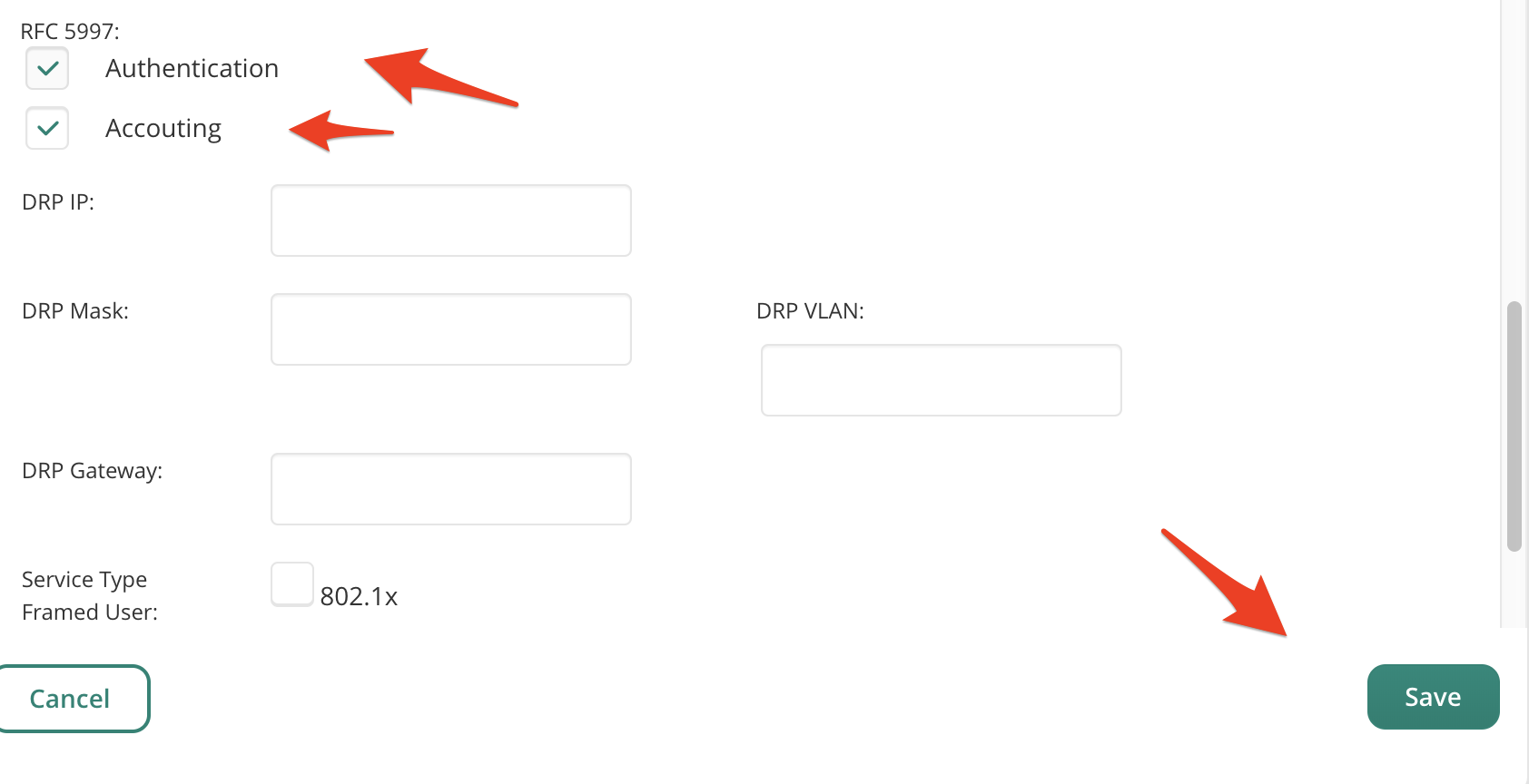

Enable accounting and authentication and save the profile

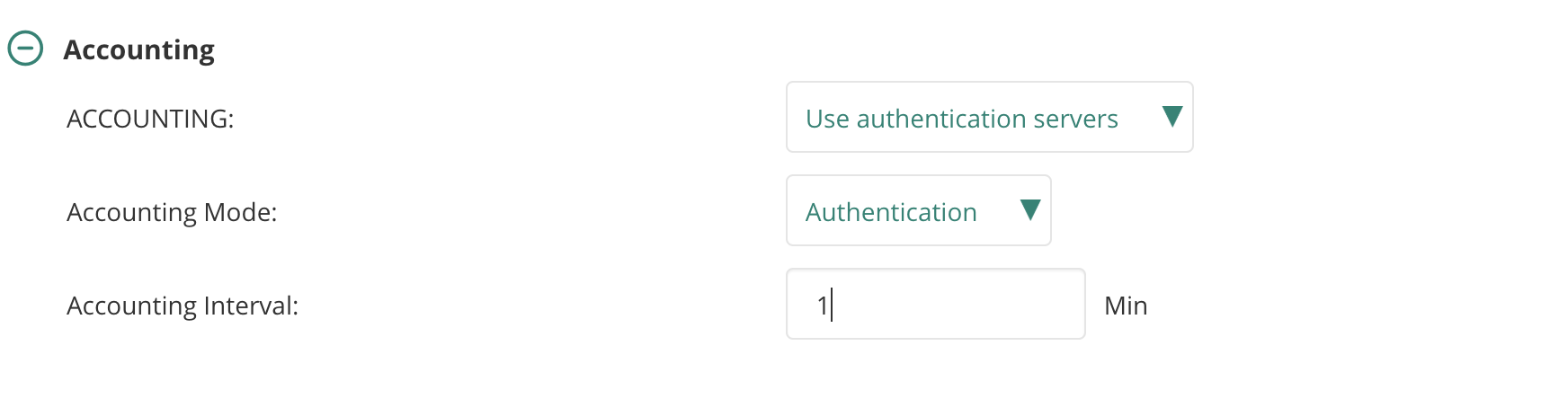

Enable Accounting

Enable accounting to same servers with accounting interval as 1 min.

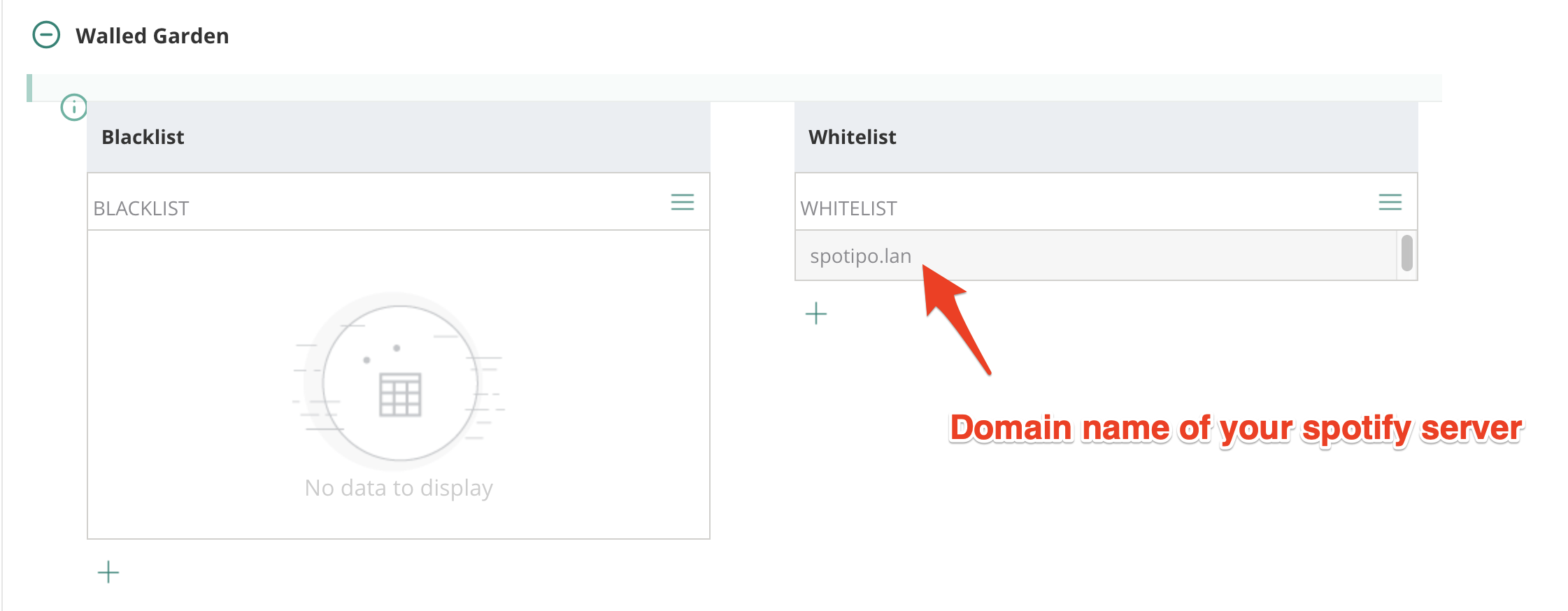

Enable Walled Garden

Add hostname of your Spotipo server into walled garden.

Save And Test

Click Next and Save the configuration. Wait for a few minutes and then connect to the SSID you have just created to test it out.
