How to enable spotipo cloud hotspot on Meraki

Get MAC of Accesspoint from Meraki Dashboard
If you have a number of APs in your site, use our Import Tool to easily add all the APs.

Login to Meraki dashboard by going to https://account.meraki.com/login/dashboard_login

Select your network, then go to and click on the required access point.

From access point details note down Public IP/External IP

Add a Meraki Access point to Spotipo

Login to your account in Spotipo cloud portal and navigate to Meraki Aps tab.

Enable a Custom-Hosted Splash page on the Meraki Cloud

Go back to meraki dashboard again and select your network, then navigate to

Select the SSID you want to configure from the SSID drop-down and select the option custom splash Page URL.

Enter below as the value

https://portal.spotipo.ai/meraki/guest/

Save Changes.

Configure Access Control

Go to

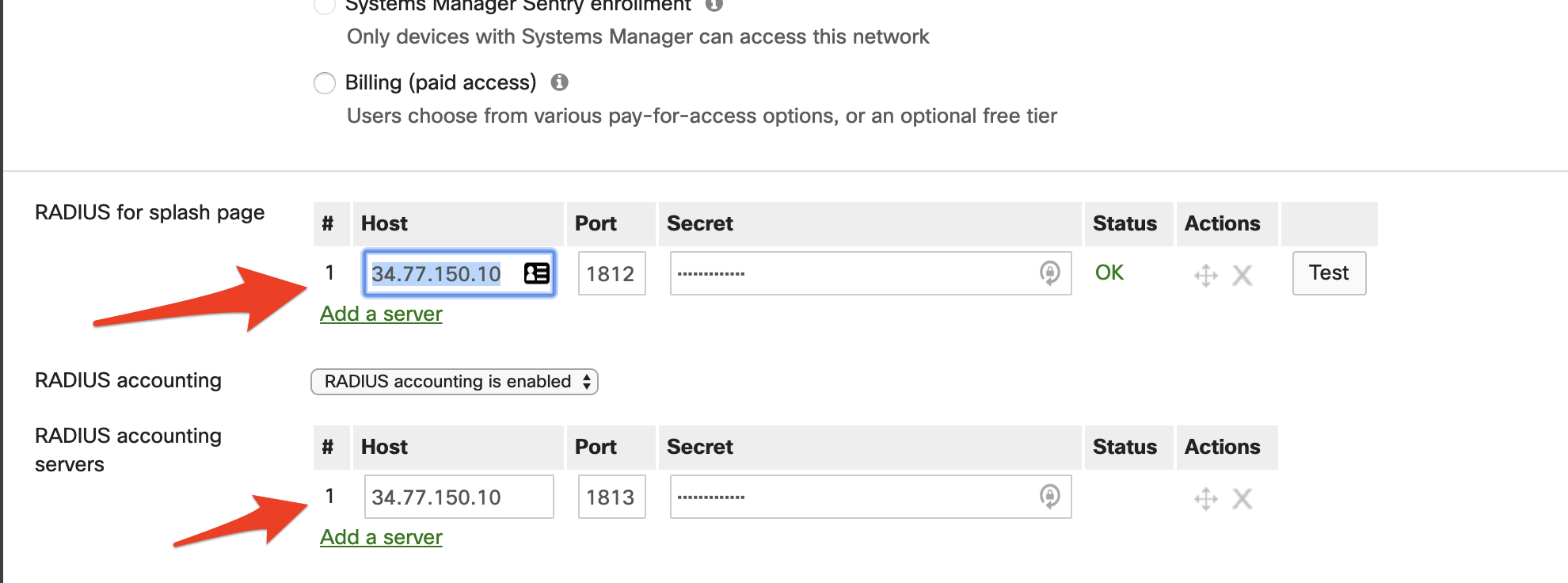

In Splash section, enable sign-on with ‘my RADIUS Server’.

Enter the below ip address as Host for both Radius servers. Enter the secret that is available in the Meraki APs page.

34.77.150.10

Add following domains to walled garden.

portal.spotipo.ai
34.77.150.10
facebook.com
akamaihd.net
akamai.net
edgecastcdn.net
licdn.net
cloudfront.net
fbcdn.net
instagram.com
cdninstagram.com

Save and Wait

Remember to press Save so that all the settings will be saved in the cloud. Please wait for 1-2 minutes for those settings to be active on the AP.

If everything is configured properly, you should be able to see Spotipo landing page when connecting to Guest WiFi network.
