How to enable spotipo cloud hotspot on Open Mesh APs

Add an OpenMesh network in Spotipo

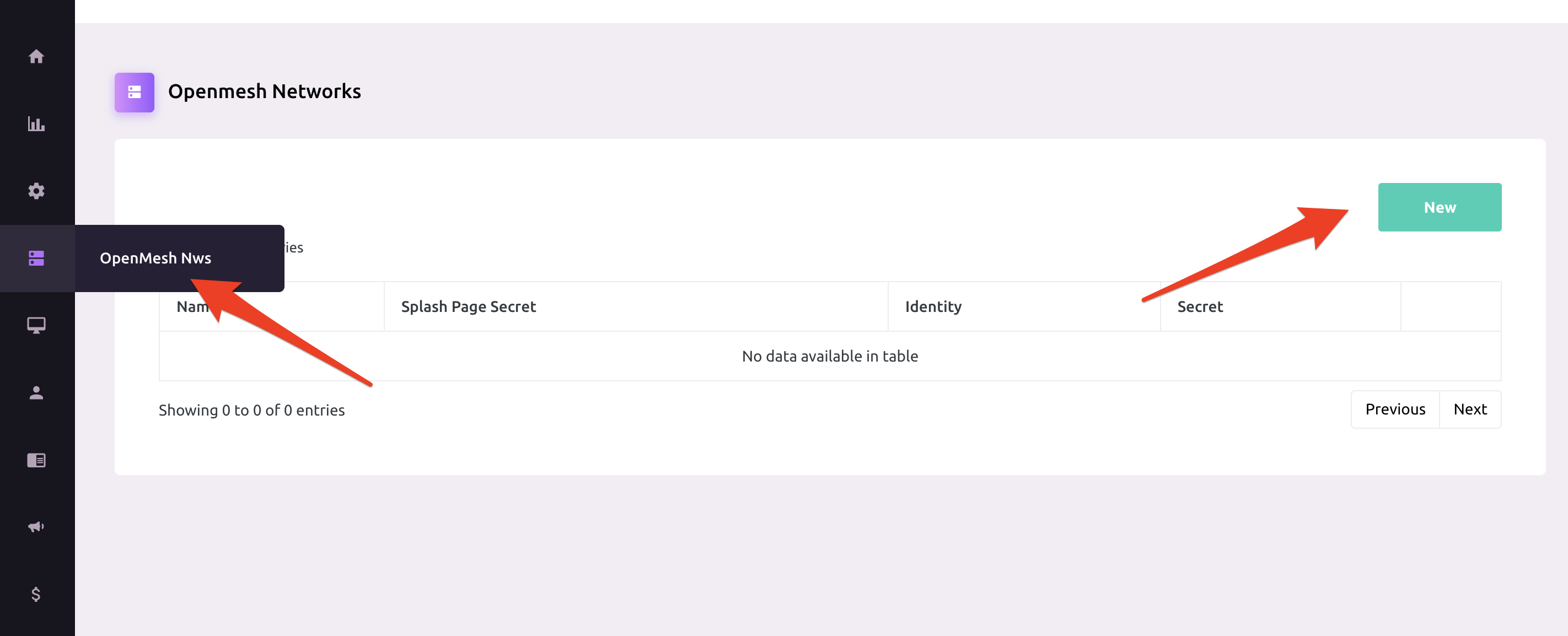

Login to Spotipo cloud portal and navigate to Openmesh Networks tab.

Create a new Network for configuring your OpenMesh network.

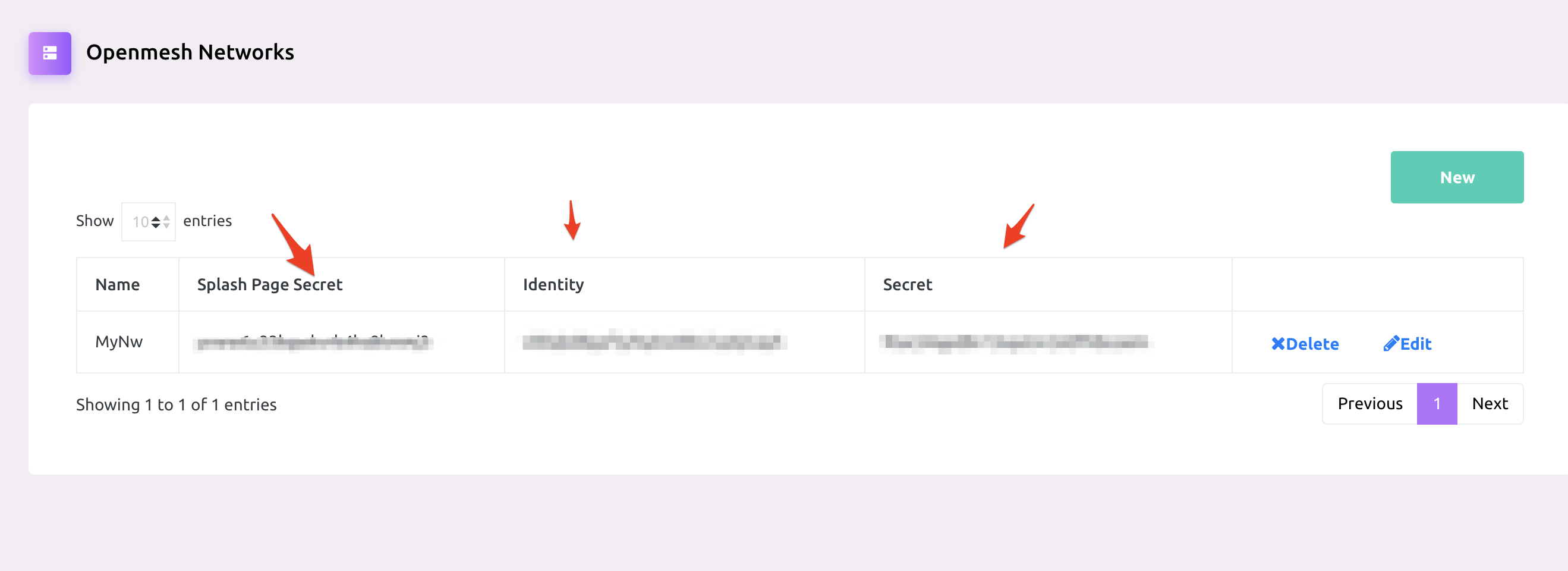

Once added, remember to note down the details created by spotipo for your network.

Configure Open Mesh SSID

Login to CloudTrax version 4 by going to https://ct4.cloudtrax.com/login

Go to and pick an SSID of your choice.

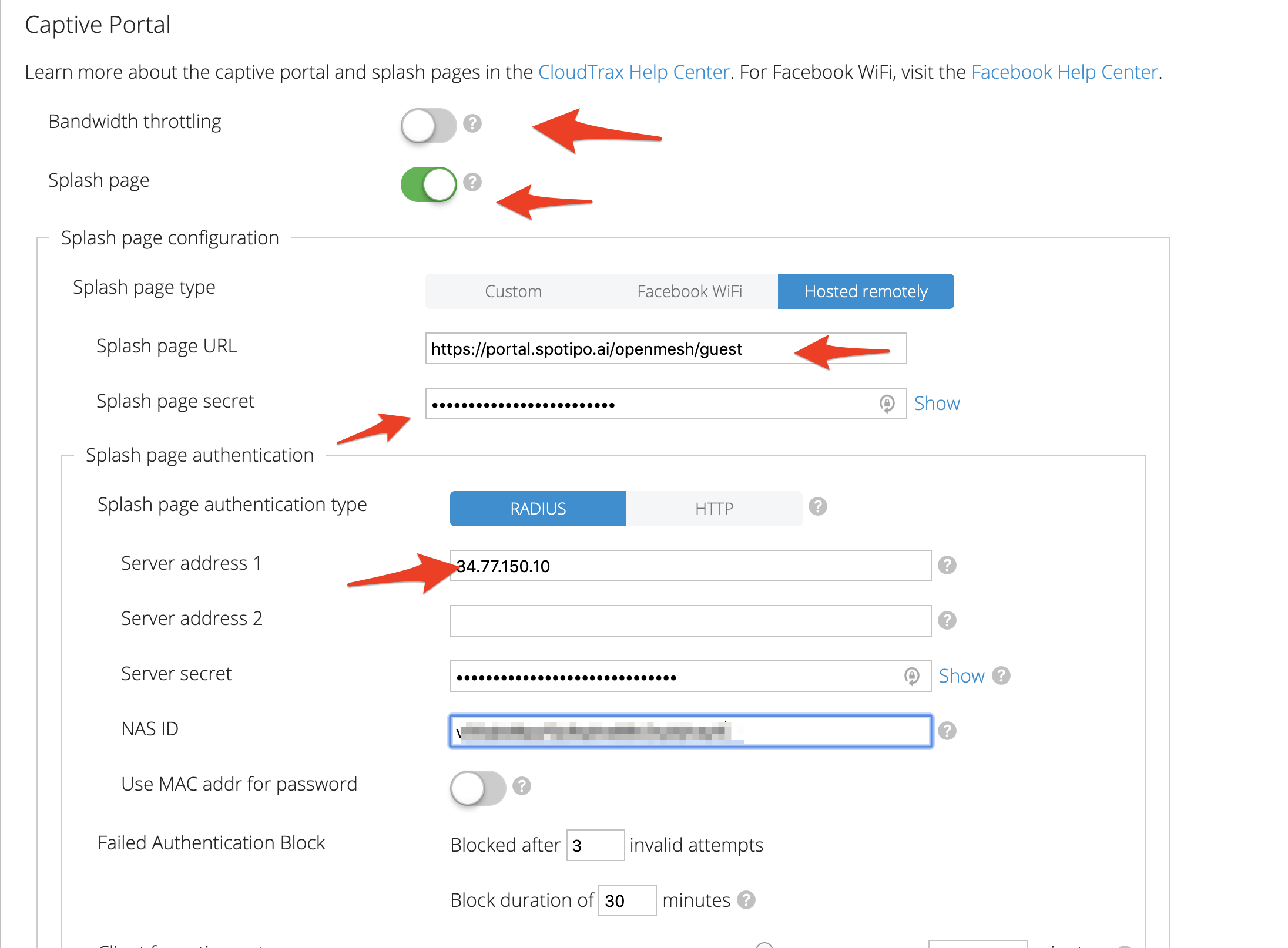

In captive portal section, enable Splash Page as per details given.

  • Enable Splash page
  • Disable bandwidth throttling
  • Use https://portal.spotipo.ai/openmesh/guest as splash page URL
  • Fill in Splash page secret, NAS ID and Server secret from the details available in spotipo
  • Use 34.77.150.10 as radius server address 1

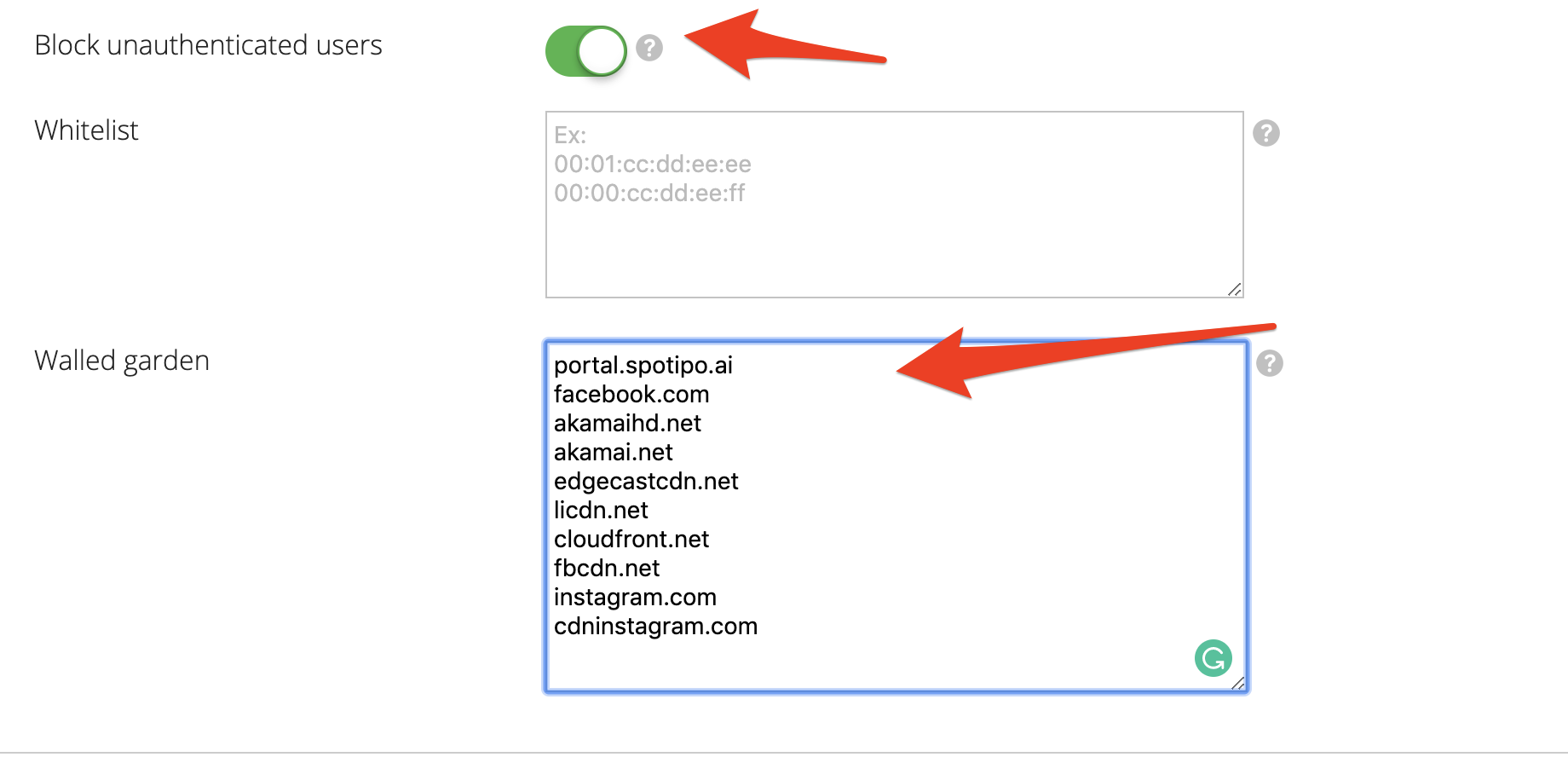

Enable block unauthenticated users and add the following domains to walled garden.

portal.spotipo.ai
facebook.com
akamaihd.net
akamai.net
edgecastcdn.net
licdn.net
cloudfront.net
fbcdn.net
instagram.com
cdninstagram.com

Save and Wait

Remember to press Save so that all the settings will be saved in the cloud. Please wait for 1-2 minutes for those settings to be active on the AP.

If everything is configured properly, you should be able to see Spotipo landing page when connecting to Guest WiFi network.
