How to configure Unifi controller with Spotipo Cloud

Prepare your Controller

Make sure that your controller is reachable from internet over port 8443. Please identify the external IP of your controller, enable port forwarding if necessary.

Check if you are able to access unifi controller interface by going to https://YOURCONTROLER IP:8443

If you want to know the IP addresses used by spotipo cloud check this link.

Configure UniFi Controller Details in Spotipo

Please make sure your unifi controller is reachable from internet on port 8443 before following this.

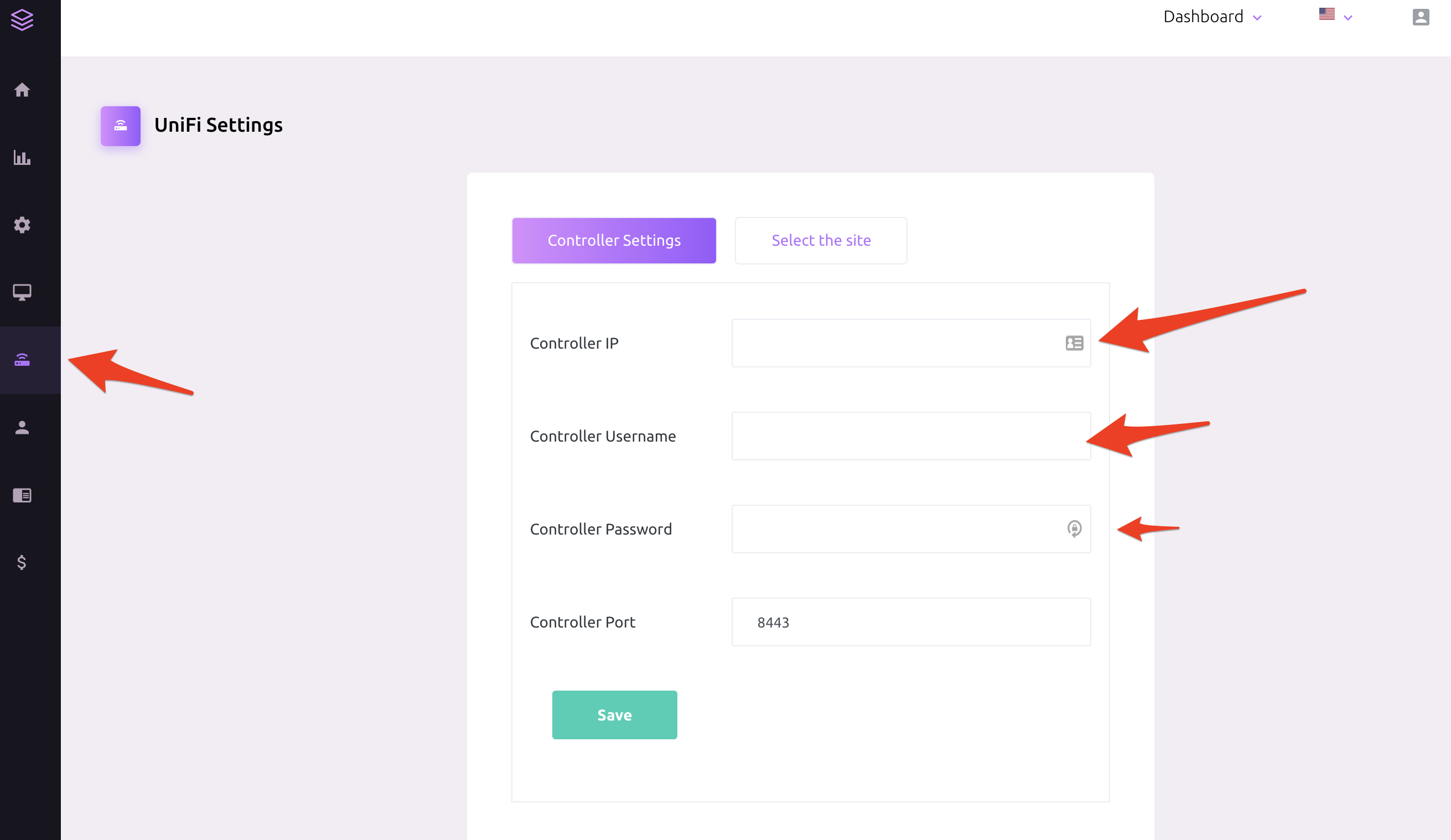

On the left tab, select Unifi Controller option. Fill in the IP, Username and Password of your controller and press Save.

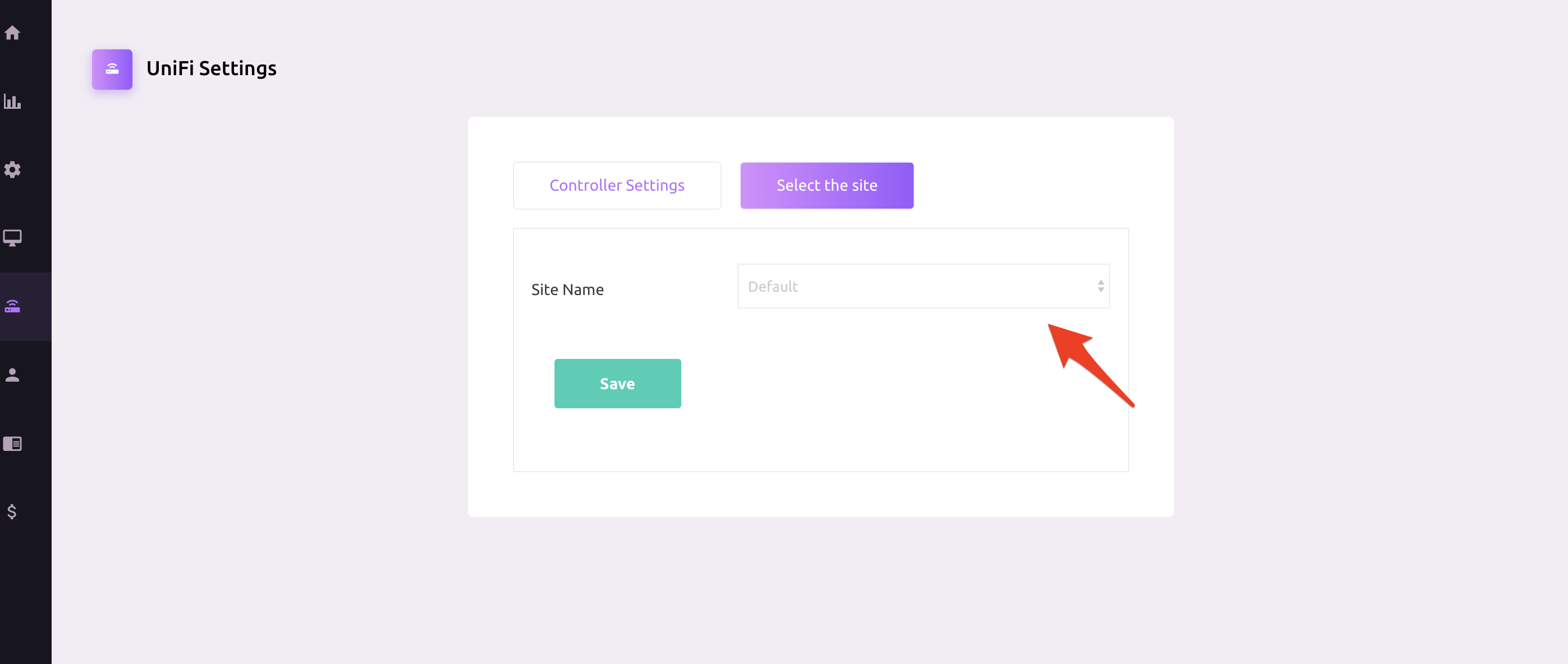

Next step select the Unifi site in which you want to enable Spotipo and press save.

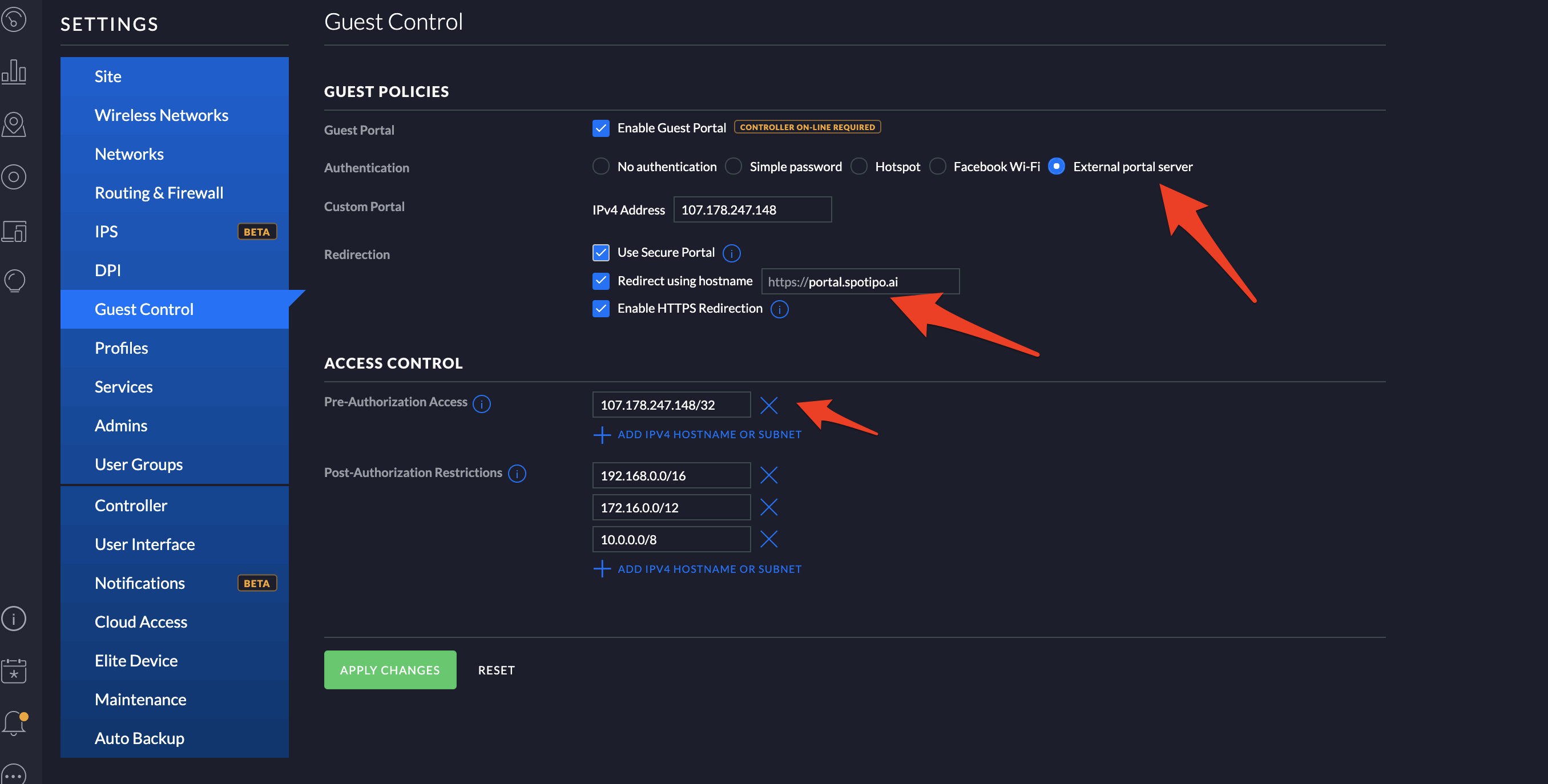

Configure Unifi controller Guest Control Settings

Now log into your Unifi controller and navigate the correct site. Select Guest Control tab and configure the following

  • Enable Guest Policy
  • Select Authentication as External Portal server
  • Under Custom portal, enter IP address as 107.178.247.148
  • Enable Use Secure Portal
  • Enable redirect using hostname and enter it's value as portal.spotipo.ai
  • Add the following entry to Pre Authorization Access 107.178.247.148/32

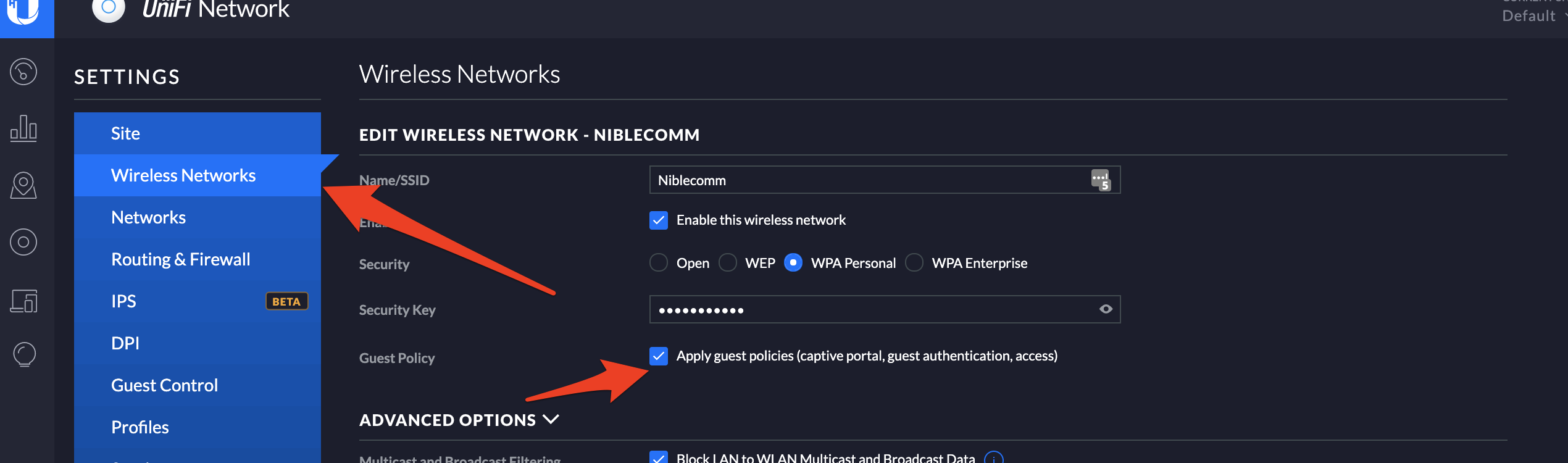

Enable Guest Policy on your SSID

Last step is to enable the Guest policy on the SSID
